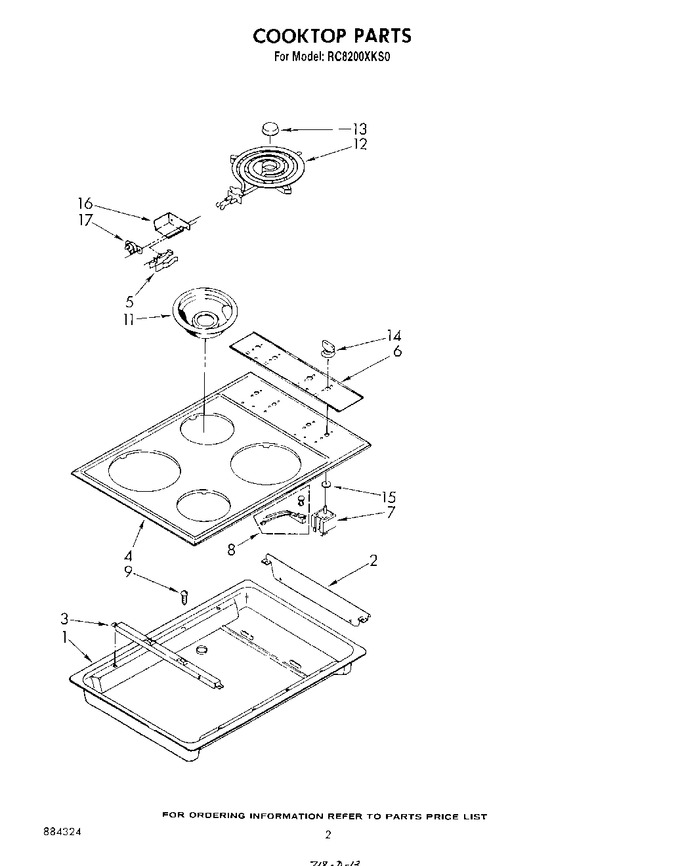

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311017 | Burner Box |
|
- | |||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 2 | 310716 | Shield, Switch |
|
- | |||||
| 3 | WP488729 | Screw, 8-18 X 1/2 (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 3 | 310717 | Support, Cooktop |
|
- | |||||
| 4 | WP488729 | Cooktop (screw, 8-18 X 1/2 (4)) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 4 | 3148039 | Cooktop, Stainless, Steel |
|
- | |||||
| 5 | 330031 | Receptacle, Plug-in (4) (Replaces: 312606) |
|
Immediately | $ 14.48 | ||||
| 5 | WP313808 | Screw, 6-32 X 9/32 (4) (Replaces: 313808) |
|
$ 6.84 | |||||
| 6 | 313133 | Panel, Control |
|
$ 0.01 | |||||
| 7 | W10900107 | Switch, Infinite (use W/8`` Surface Unit (2)) (Replaces: 311838) |
|
Immediately | $ 51.87 | ||||
| 7 | WP486579 | Switch, Infinite (screw, 8-32 X 5/16 (8)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 7 | W10900107 | Switch, Infinite (use W/6`` Surface Unit (2)) (Replaces: 311839) |
|
Immediately | $ 51.87 | ||||
| 8 | 313462 | Light, Indicator (2) (includes Lens Part No.313602) |
|
- | |||||
| 9 | 166681 | Screw, 10d-32 X 5/16 (2) (ground Wire) |
|
- | |||||
| 11 | WPW10196406 | Pan, Surface Unit (6`` (2)) (Replaces: 308539) |
|
Immediately | $ 12.05 | ||||
| 11 | W10196405RW | Pan, Surface Unit (8`` (2)) (Replaces: 308540) |
|
Immediately | $ 18.70 | ||||
| 12 | WP660532 | Unit, Surface (2) 6`` (240v) (Replaces: 660528) |
|
Immediately | $ 36.90 | ||||
| 12 | 834645 | Unit, Surface (2) 6`` (240v) (208v) |
|
- | |||||
| 12 | WP660532 | Unit, Surface (2) 6`` (240v) (alt.) (Replaces: 309191) |
|
Immediately | $ 36.90 | ||||
| 12 | WP660532 | Unit, Surface (2) 6`` (240v) (alt.) (Replaces: 313968) |
|
Immediately | $ 36.90 | ||||
| 13 | 309195 | Medallion, Surface Unit |
|
- | |||||
| 14 | WP330190 | Knob, Control (4) (Replaces: 330190) |
|
$ 38.10 | |||||
| 15 | 309839 | Seal, Switch Shaft (4) |
|
- | |||||
| 16 | 3147830 | Bracket, Sensor |
|
- | |||||
| 17 | 3147833 | Thermostat |
|
$ 0.01 | |||||
| 17 | WP313808 | Screw, 6-32 X 1/4 (3) (Replaces: 313808) |
|
$ 6.84 | |||||
| 834647 | (208v) |
|
- | ||||||
| WP660533 | (alt.) (Replaces: 313966) |
|
Immediately | $ 39.47 | |||||
| WP660533 | (alt.) (Replaces: 309185) |
|
Immediately | $ 39.47 | |||||
| WP660533 | Unit, Surface (2) 8`` (240v) (Replaces: 660530) |
|
Immediately | $ 39.47 |
