Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

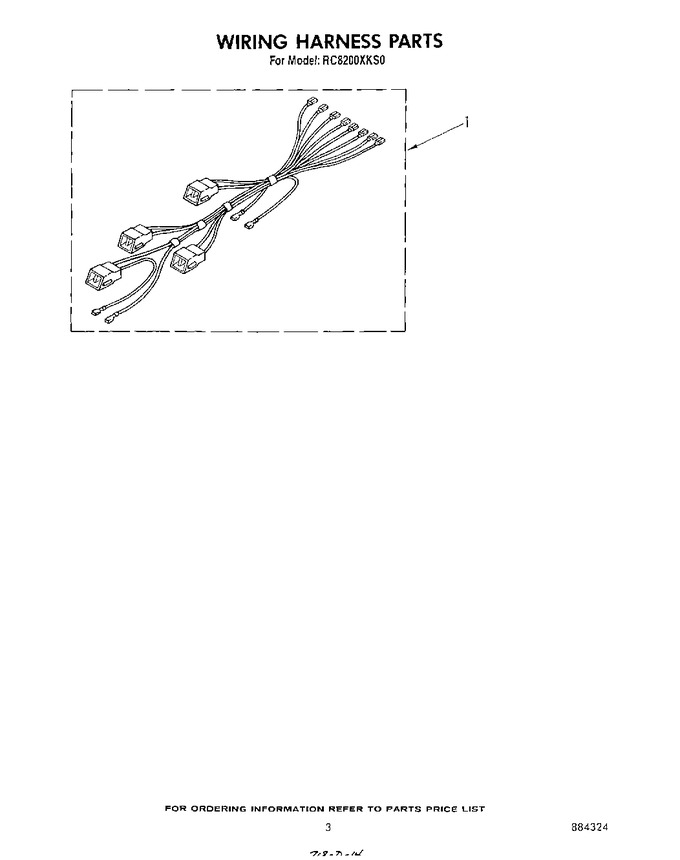

1	3147975		Harness, Wiring (surface Unit)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	LIT311437		Installation Instructions		Appelez-nous	-
	LIT311423		Guide, Use & Care		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT884324		List, Parts		Appelez-nous	-
