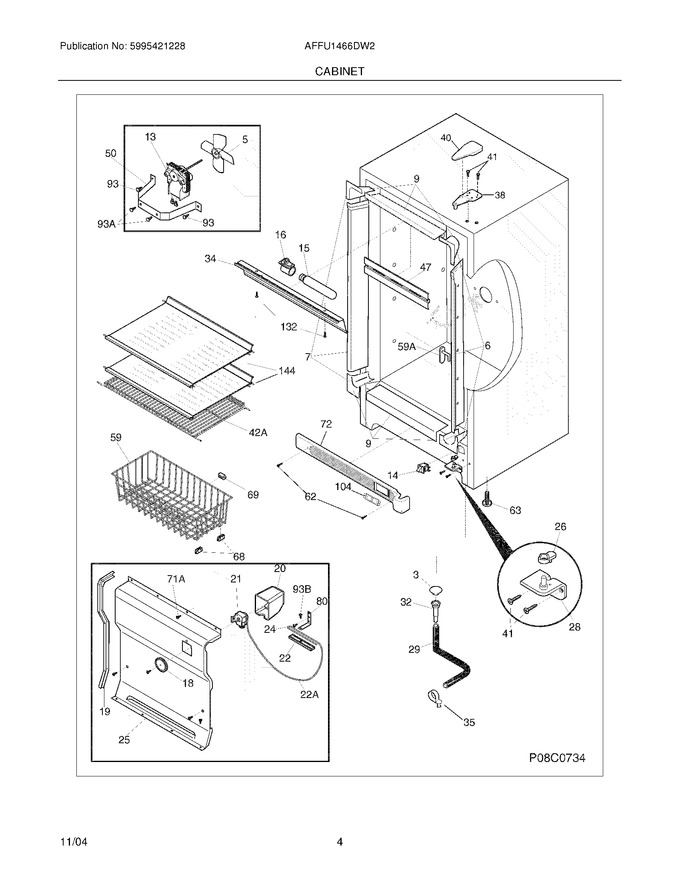

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 62.17 | |||||
| 6 | 216604300 | Breaker Kit W/corners,45.13`` Long ,no Lock Slot |
|
$ 163.64 | |||||
| 7 | 216603800 | Breaker Kit W/corners,incl Lock Catch |
|
- | |||||
| 9 | 216603400 | Breaker Kit W/corners,22.13`` Long ,top Or Bottom |
|
- | |||||
| 13 | 297309000 | Motor,fan ,115 V (Replaces: 216934100) |
|
Immediately | $ 55.32 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 73.06 | ||||
| 18 | 216707200 | Knob,temp Control |
|
$ 44.10 | |||||
| 19 | 216204900 | Gasket, Evap Cover |
|
$ 51.45 | |||||
| 20 | 216230300 | Cover, Temp Control |
|
$ 49.88 | |||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 25 | 216820100 | Cover,evaporator |
|
- | |||||
| 26 | 216503300 | Ramp,door Closer |
|
$ 8.82 | |||||
| 28 | 216247400 | Hinge-bottom |
|
- | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 15.90 | ||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 216816213 | Shield-light |
|
- | |||||
| 35 | 216629700 | Clip |
|
- | |||||
| 38 | 216939100 | Hinge-upper |
|
$ 59.54 | |||||
| 40 | 297164400 | Cover-hinge (Replaces: 216809000) |
|
$ 12.65 | |||||
| 41 | 216936800 | Screw-hinge,12-24x.700 Hwh ,btm |
|
- | |||||
| 47 | 297192903 | Plate,baffle ,snap Fit (Replaces: 216661600) |
|
Immediately | $ 25.31 | ||||
| 50 | 216394050 | Bracket,fan Motor Mount (Replaces: 216394000) |
|
$ 22.75 | |||||
| 59 | 216826400 | Basket |
|
- | |||||
| 62 | 131420300 | Screw, Cr Truss Head, 8-18ab X 0.750 |
|
$ 13.46 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 68 | 08009560 | Glide Basket (4) |
|
$ 35.25 | |||||
| 69 | 5305878546 | Bumper Basket (2) |
|
$ 7.23 | |||||
| 72 | 216947000 | Grille/kickplate,28`` |
|
- | |||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 104 | 216926700 | Shield |
|
$ 42.06 | |||||
| 104 | 216948401 | Light,signal,assy W/bracket |
|
$ 55.24 | |||||
| 132 | 5303283898 | Screw, 6-20ab X 3/8 |
|
- | |||||
| 144 | 216922303 | Shelf-assy,fixed,glass ,(2) ,w/frame & Trim |
|
- | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 42A | 216546200 | Shelf,14.50 X 23.88 Wh,14.50x23.88 ,white |
|
- | |||||
| 59A | 216486500 | Stop-basket |
|
$ 20.58 | |||||
| 71A | 5304416289 | Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel |
|
- | |||||
| 93A | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping (Replaces: 216629600) |
|
$ 13.01 | |||||
| 93B | 216036600 | Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming |
|
- | |||||
| F14 | 216822900 | Switch,light/lamp ,ramp |
|
Immediately | $ 70.16 | ||||
| F16 | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 19.52 | |||||
| F21 | 216788000 | Control-temperature |
|
$ 163.30 | |||||
| F5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 49.03 | ||||
| NI | 216502400 | Grommet-shelf Mtg |
|
$ 16.63 | |||||
| NI | 216912400 | Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2) |
|
- | |||||
| NI | 09948773 | Insulation, Drain Tube |
|
$ 12.60 | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| NI | 216795311 | Energy Guide |
|
- |
