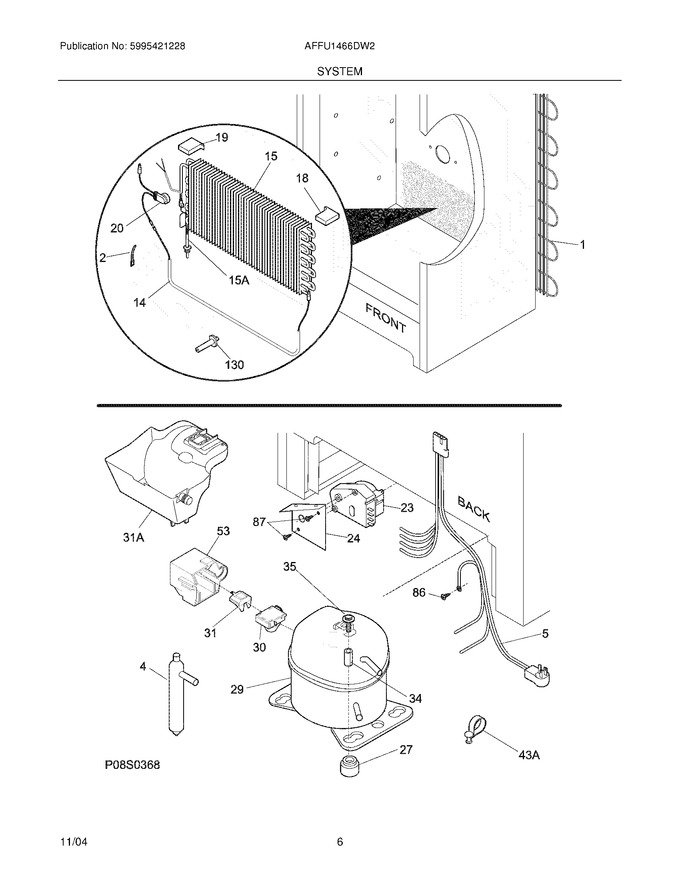

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
5	216971900		Harness-main		Appelez-nous	-
14	5304496687		Heater-defrost   (Replaces: 216740000)				$ 97.81
15	297414800		Evaporator   (Replaces: 216737400)				$ 145.30
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat-defrost   (Replaces: 216731000)			Immediately	$ 27.52
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	216966800		Compressor,assy		Appelez-nous	-
30	216596800		Starter/,relay		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
53	216347800		Cover Terminal,cover-comp Term		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
130	216486800		Support,evaporator Mtg		Appelez-nous	-
15A	297348500		Heat Exchanger   (Replaces: 216565700)				$ 112.69
31A	216948700		Pan-drain				$ 49.93
43A	216629700		Clip		Appelez-nous	-
F1	5300123788		Condenser				$ 635.80
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F31	216954208		Overload Protector   (Replaces: 216100106)				$ 74.42
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
NI	216502500		Sleeve,suction Line				$ 10.85
