01 - Cooktop, Literature

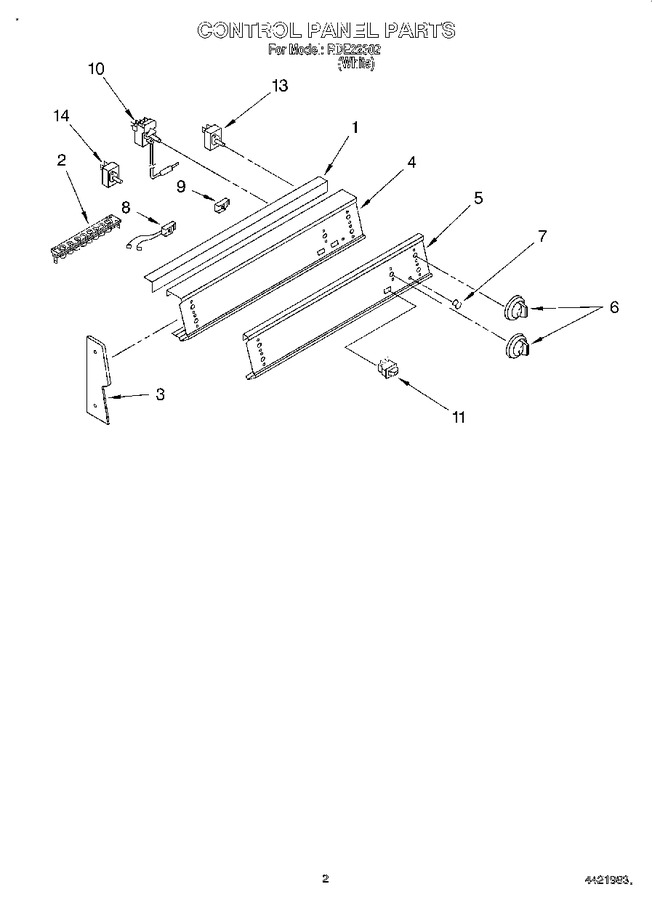

02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9780492PW | Lamp Cover |
|
- | |||||
| 2 | WP112432 | Nut 10-24 (2) (Replaces: 65034700) |
|
$ 7.16 | |||||
| 2 | WP8203546 | Fuse Block (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 2 | 98884 | Screw (2) |
|
- | |||||
| 3 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 3 | 9750263FW | End Cap (right) |
|
- | |||||
| 3 | 9750262FW | End Cap (left) |
|
- | |||||
| 4 | 3190069 | Panel, Control |
|
- | |||||
| 4 | 9780265 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 5 | 3190842 | Panel, Control (faceplate) |
|
- | |||||
| 6 | 9750272FW | Knobs, Control |
|
- | |||||
| 7 | WP9750343 | Indicator Lens (Replaces: 9750343) |
|
Immediately | $ 5.14 | ||||
| 8 | 9780801 | Light Module (oven) |
|
- | |||||
| 9 | 9750964 | Light Module, (burners) |
|
- | |||||
| 10 | 6700G0001 | Thermostat, Oven (Replaces: 9750401) |
|
Immediately | $ 295.97 | ||||
| 11 | 9780319 | Switch, Rocker |
|
- | |||||
| 13 | WP9750638 | Infinite Switch (1400w, 6`` (3)) (Replaces: 9750638) |
|
Immediately | $ 102.50 | ||||
| 14 | WP3400882 | Infinite Switch (screw (8)) (Replaces: 3400816) |
|
Immediately | $ 6.47 | ||||
| 14 | WP9750641 | Infinite Switch (2400w 8`` (1)) (Replaces: 9750641) |
|
Immediately | $ 92.72 |
