SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven, Optional

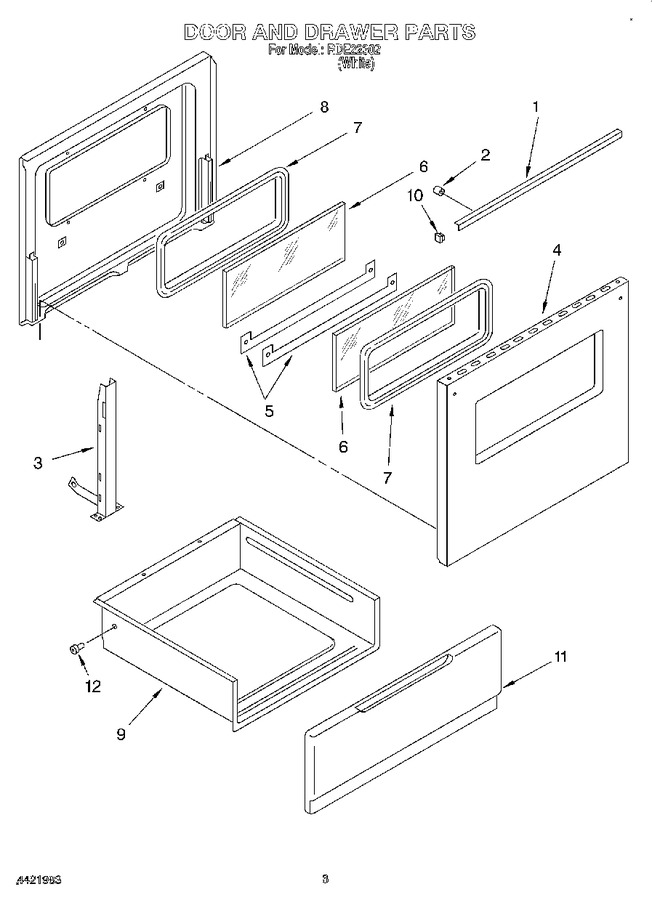

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750330		Handle, Door		Appelez-nous	-
2	423857		Spacer, Handle (2)		Appelez-nous	-
2	WPW10001180		Screw, (2) 10-24 X 1/2   (Replaces: 9750890)				$ 7.23
3	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
3	9750797		Hinge, Door R Or L		Appelez-nous	-
4	9750798GW		Panel, Door (white)		Appelez-nous	-
5	420520		Frame, Glass (inner - Outer)		Appelez-nous	-
5	9780271		Screw (2) 8 X 1/4		Appelez-nous	-
6	421474		Glass, Inner-outer		Appelez-nous	-
7	422642		Gasket, Oven Glass		Appelez-nous	-
8	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
8	9780672GM		Liner, Door		Appelez-nous	-
9	9750796		Drawer & Roller		Appelez-nous	-
10	9781070		End Cap, Handle (left)		Appelez-nous	-
10	9781071		End Cap, Handle (right)		Appelez-nous	-
11	423247		Front, Drawer (screw, (4))		Appelez-nous	-
11	9781164PW		Front, Drawer (white)		Appelez-nous	-
12	814229		Support, Roller   (Replaces: 422604)			Immediately	$ 51.23
