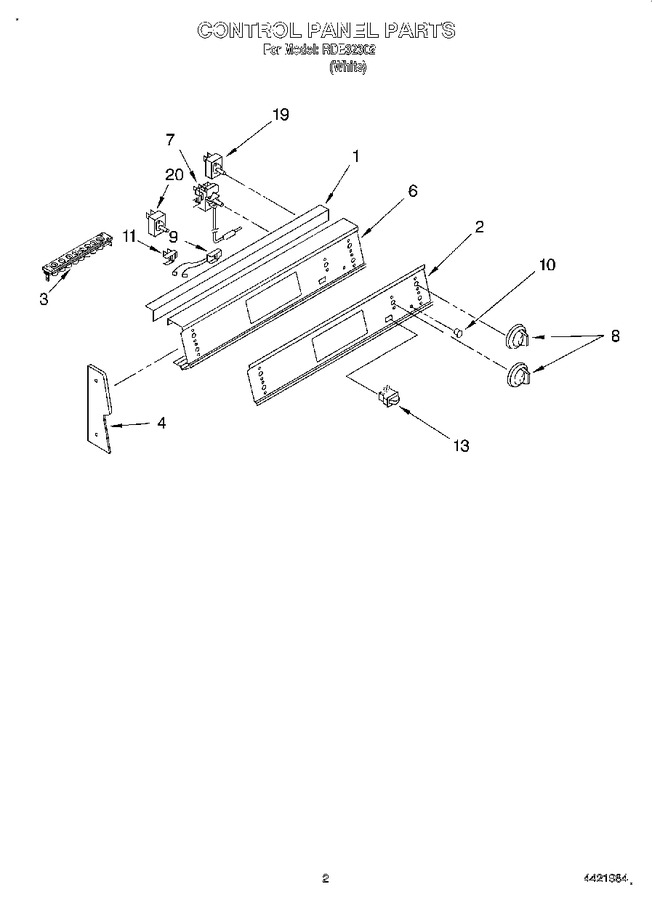

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751255PW		Cover, Lamp		Appelez-nous	-
2	3190844		Panel, Control (overlay)		Appelez-nous	-
3	WP8203546		Fuse Block   (Replaces: 258076)			Immediately	$ 27.12
3	98884		Screw (2)		Appelez-nous	-
3	W10080180		Nut, (2) 10-24   (Replaces: 4211810)				$ 12.13
4	9780265		End Cap (screw, (4) 10 X 3/8)		Appelez-nous	-
4	9750263FW		End Cap (right)		Appelez-nous	-
4	9750262FW		End Cap (left)		Appelez-nous	-
6	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
6	3190059		Panel, Control		Appelez-nous	-
7	WP3400882		Screw, (2)   (Replaces: 3400816)			Immediately	$ 6.47
7	6700G0001		Thermostat   (Replaces: 9750401)			Immediately	$ 295.97
8	9750272FW		Knobs, Control		Appelez-nous	-
9	9780801		Light, Indicator (oven)		Appelez-nous	-
10	WP9750343		Lens, Indicator (3)   (Replaces: 9750343)			Immediately	$ 5.14
11	9750964		Light, Indicator (2) (burners)		Appelez-nous	-
13	9780319		Switch, Oven Light		Appelez-nous	-
19	WP9750638		Infinite Switch (1400w (2))   (Replaces: 9750638)			Immediately	$ 102.50
20	WP9750641		Infinite Switch (2400w (2))   (Replaces: 9750641)			Immediately	$ 92.72
20	WP3400882		Infinite Switch (screw (8))   (Replaces: 3400816)			Immediately	$ 6.47
