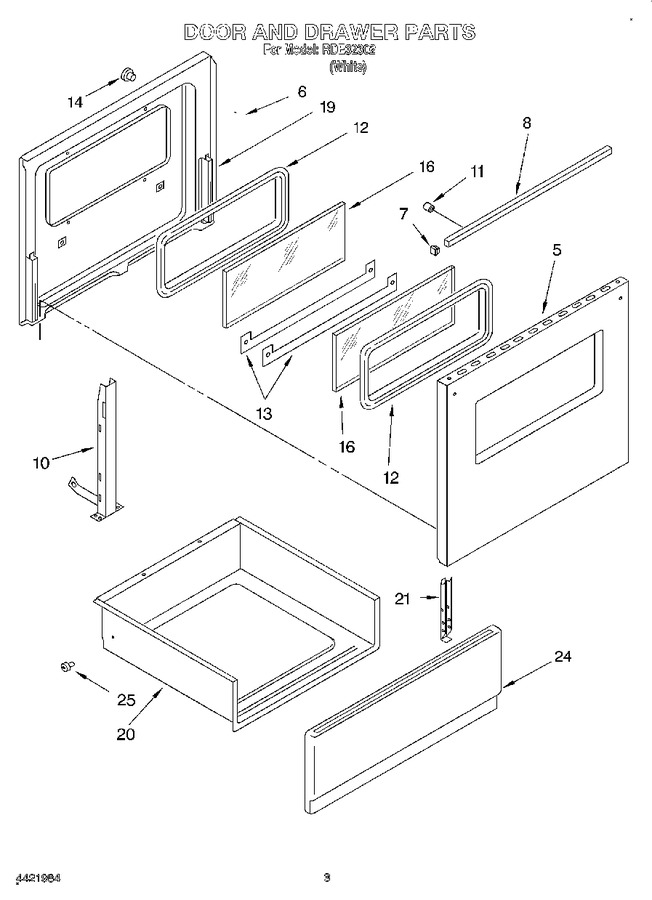

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	9780983GW		Panel, Door (white)		Appelez-nous	-
5	9780265		Panel, Door (screw, (4))		Appelez-nous	-
6	3149333		Screw				$ 5.33
6	9750676		Retainer, Door (2)		Appelez-nous	-
7	9781071		End Cap (right)		Appelez-nous	-
7	9781070		End Cap (left)		Appelez-nous	-
8	423138		Handle, Door		Appelez-nous	-
10	9780265		Screw, (4)		Appelez-nous	-
10	9750235		Hinge, Door R Or L		Appelez-nous	-
10	WP90296		Clip   (Replaces: 90296)				$ 7.07
10	WP9724509		Bumper, Rubber   (Replaces: 354241)			Immediately	$ 7.14
11	WPW10001180		Screw, (2) 10-24 X 1/2   (Replaces: 9750890)				$ 7.23
11	423857		Spacer, Handle (r Or L)		Appelez-nous	-
12	9750685		Gasket, Glass		Appelez-nous	-
13	9780265		Screw (2)		Appelez-nous	-
13	9750894		Retainer, Glass		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 72.68
16	9750686		Glass, Inner-outer		Appelez-nous	-
19	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
19	9780671GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	9780272		Screw (4) 10 X 1/2		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
24	9750168PW		Front, Drawer (white)		Appelez-nous	-
25	814229		Roller, Support   (Replaces: 422604)			Immediately	$ 51.23
