SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4421420		Cover, Lamp		Appelez-nous	-
2	9781436		Panel, Control (overlay)		Appelez-nous	-
4	9780265		End Cap (screw, (4) 10 X 3/8)		Appelez-nous	-
4	4211970		End Cap (left)		Appelez-nous	-
4	4211971		End Cap (right)		Appelez-nous	-
6	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
6	3190062		Panel, Control		Appelez-nous	-
7	9780268		Screw, (2) 8-32 X 3/16		Appelez-nous	-
7	9781315		Thermostat				$ 238.09
8	4211964		Knobs, Control (6)		Appelez-nous	-
9	9780802		Light, Indicator (switch, Selector (2))		Appelez-nous	-
9	9780801		Light, Indicator (oven - Thermostat)		Appelez-nous	-
10	WP9750343		Lens, Indicator (5)   (Replaces: 9750343)			Immediately	$ 5.14
11	9750964		Light, Indicator (2) (cooktop)		Appelez-nous	-
13	9780355		Switch, Oven Light				$ 22.48
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
15	9750302CP		Timer   (Replaces: 9750302)		Appelez-nous	-
16	4211982		Button, Timer (8)		Appelez-nous	-
17	9750715		Bracket, Timer		Appelez-nous	-
17	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
18	9750901		Lens, Timer		Appelez-nous	-
19	9780268		Infinite Switch (screw (8) 8-32 X 3/16)		Appelez-nous	-
19	WP9750638		Infinite Switch (1400w (2))   (Replaces: 9750638)			Immediately	$ 102.50
19	WP9750641		Infinite Switch (2400w (2))   (Replaces: 9750641)			Immediately	$ 92.72
21	W11245710		Screw, (2)   (Replaces: 9780274)			Immediately	$ 12.65
21	9781313		Switch, Selector		Appelez-nous	-
22	3190057		Button, Plug		Appelez-nous	-

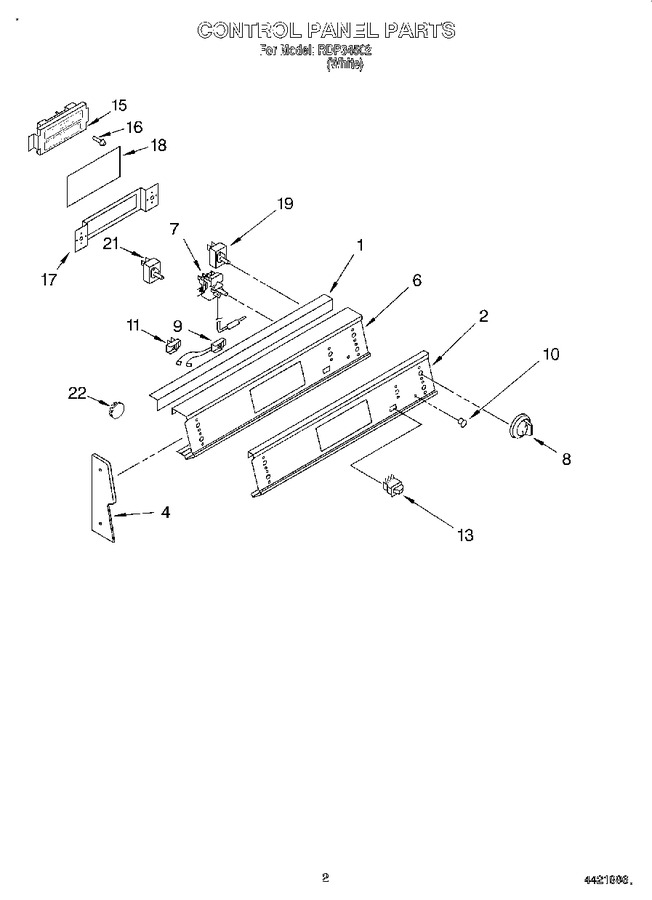

    View Diagram in Separate Window       Print Part List
