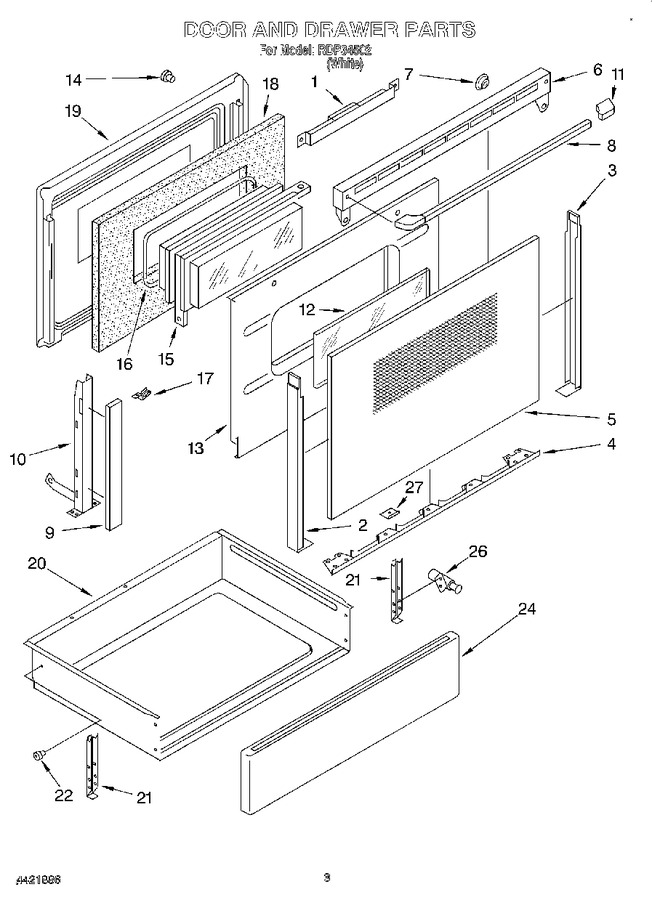

03 - Door And Drawer


04 - Oven Chassis


05 - Oven, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750693		Channel, Heat		Appelez-nous	-
2	4211899		Trim, Door-left		Appelez-nous	-
3	4211900		Trim, Door-right		Appelez-nous	-
4	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
4	9781209PB		Trim, Door Bottom		Appelez-nous	-
5	9781240		Glass, Door Front		Appelez-nous	-
6	9781166GB		Vent, Door		Appelez-nous	-
6	9780265		Screw (2)		Appelez-nous	-
6	9781490		Seal, Door Vent Side		Appelez-nous	-
6	9781450		Gasket, Door Vent		Appelez-nous	-
7	9781453		Spacer, Door Vent		Appelez-nous	-
8	4421414		Handle, Door		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9750234)			Immediately	$ 208.67
11	9752030FB		End Cap, Handle (r Or L)		Appelez-nous	-
11	9780266		Screw (2) 10-24 X 5/8		Appelez-nous	-
12	9750634		Baffle, Glass				$ 61.41
13	9750233		Shield, Door		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 72.68
15	9751245		Window Pack (assembly)		Appelez-nous	-
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
16	9751135		Seal, Window		Appelez-nous	-
17	9750676		Retainer, Glass		Appelez-nous	-
18	WPW10208653		Insulation, Door   (Replaces: 9750231)			Immediately	$ 49.92
19	9781197GM		Liner, Door		Appelez-nous	-
20	9750257		Drawer & Roller		Appelez-nous	-
21	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	814229		Support, Roller   (Replaces: 423713)			Immediately	$ 51.23
24	4211992		Front, Drawer		Appelez-nous	-
24	9780272		Screw, (2) 10 X 1/2		Appelez-nous	-
26	WP90296		Clip   (Replaces: 90296)				$ 7.07
26	9751248		Latch, Drawer		Appelez-nous	-
26	9780806		Screw		Appelez-nous	-
27	9781206		Retainer, Glass		Appelez-nous	-
