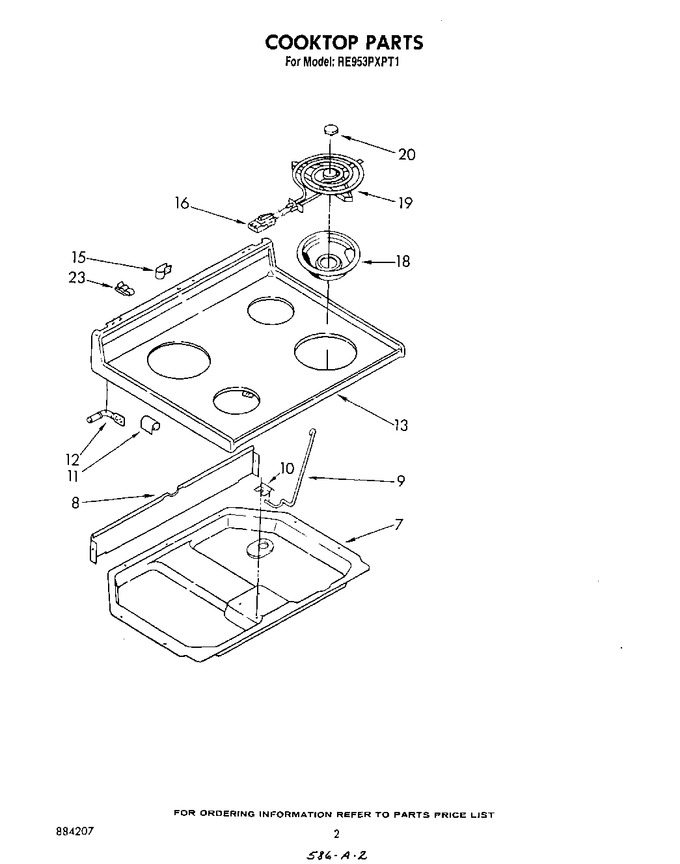

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	307929		Burner Box		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
8	307973		Shield, Wiring		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
9	307968		Rod, Cooktop		Appelez-nous	-
10	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
10	307967		Retainer, Cooktop		Appelez-nous	-
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
13	309922		Cooktop (chrome)		Appelez-nous	-
15	WP308605		Strain Relief   (Replaces: 308604)				$ 10.08
15	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
16	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
16	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
18	WPW10196406		Reflector Pan (6`` (2))   (Replaces: 308539)			Immediately	$ 12.05
18	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 308540)			Immediately	$ 18.70
19	WP660533		Unit, Surface 8`` R.f. & L.r. (includes Illus. 20)   (Replaces: 312559)			Immediately	$ 39.47
19	WPY04100165		Unit, Surface 6`` L.f. & R.r.   (Replaces: 312557)			Immediately	$ 50.62
20	309195		Medallion (4)		Appelez-nous	-
23	313570		Tube Clamp		Appelez-nous	-
