SELECT A DIAGRAM

02 - Cook Top


03 - Oven


04 - Oven Door


05 - Control Panel


06 - Upper Oven


07 - Upper Oven Door And Unit


08 - Oven (continued) , Literature And Optional


09 - Wiring Harness

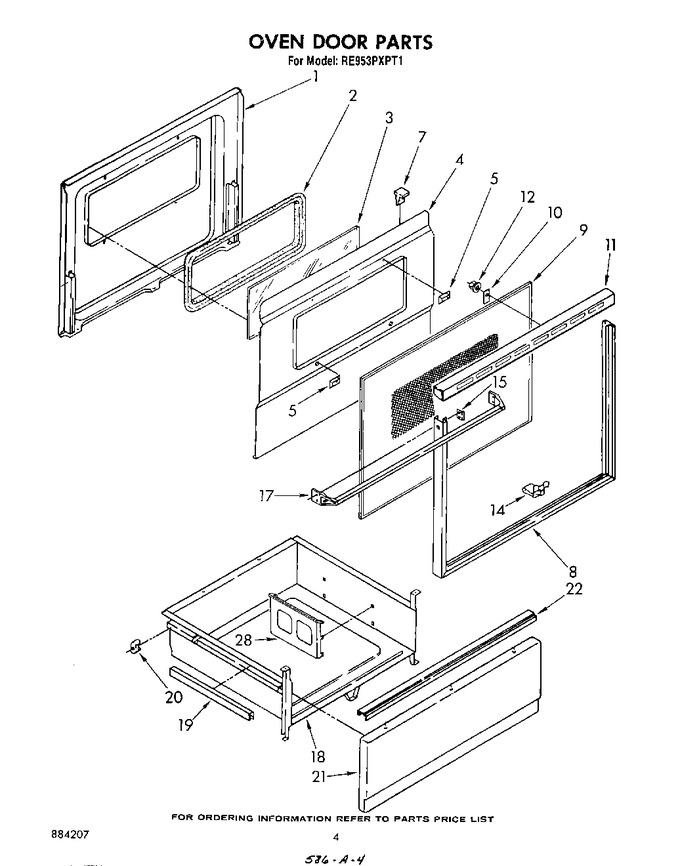

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329685		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (3)		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
2	258711		Seal, Pano Glass		Appelez-nous	-
3	258988		Glass, Inner 30``		Appelez-nous	-
4	307924		Baffle, Insulation		Appelez-nous	-
5	307748		Screw, 10a X 1\2 Black (4)		Appelez-nous	-
5	258990		Spacer, Insulation Baffle (4)		Appelez-nous	-
7	312783		Bumper (4)		Appelez-nous	-
8	310427		Frame, Door 30``		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
10	310705		Hold Down, Glass (2)		Appelez-nous	-
11	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
12	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
14	310706		Clip, Glass (10)		Appelez-nous	-
15	311506		Clip (2)		Appelez-nous	-
17	WP355515		Screw, 8 X 7/8 (4)   (Replaces: 355515)				$ 6.90
17	312722		Handle, Oven Door				$ 118.10
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
21	309923		Panel Drawer (black)		Appelez-nous	-
21	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
22	313337		Handle, Drawer		Appelez-nous	-
22	WP488627		Screw, 8-18 X 1/2 (3)   (Replaces: 313349)				$ 6.81
28	357645		Rack, Literature		Appelez-nous	-
