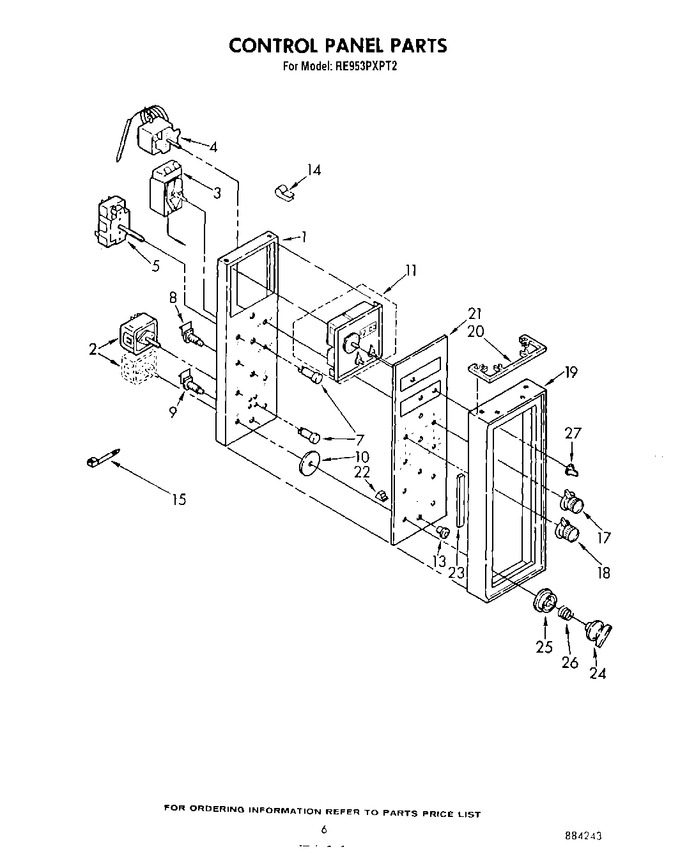

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-32 X 1/2 (2) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 1 | 3170226 | Panel, Control |
|
- | |||||
| 1 | 309101 | Plug Button (2) |
|
- | |||||
| 2 | 308119 | Screw, 8-32 X 3/16 (8) |
|
- | |||||
| 2 | 308475 | Switch, Infinite (4) |
|
- | |||||
| 3 | 308786 | Thermostat, Oven (pyro) |
|
- | |||||
| 3 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 6.84 | |||||
| 4 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 6.84 | |||||
| 4 | 308787 | Thermostat (upper Oven) |
|
- | |||||
| 5 | 310350 | Switch, Selector (4 Position) (2) |
|
- | |||||
| 5 | 308119 | Screw, 8-32 X 3/16 (2) |
|
- | |||||
| 7 | 311550 | Light, Indicator 250v (8) |
|
- | |||||
| 8 | 312370 | Switch, Fluorescent Light |
|
- | |||||
| 9 | 312581 | Switch, Oven Light |
|
- | |||||
| 9 | 312796 | Washer, Lock |
|
- | |||||
| 10 | 308352 | Skirt, Knob (4) |
|
- | |||||
| 11 | 313519 | Timer, Digital (includes Illus. 12) |
|
- | |||||
| 11 | WP313808 | Screw, 6-32 X 1/4 (3) (Replaces: 311932) |
|
$ 6.84 | |||||
| 11 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 11 | WP488627 | Screw, 8a X 1/2 (4) (Replaces: 338156) |
|
$ 6.81 | |||||
| 13 | 313030 | Bezel, Switch (2) |
|
- | |||||
| 14 | WP3390631 | Screw, 10a X 3/8 (2) (Replaces: 309112) |
|
$ 7.04 | |||||
| 14 | 308613 | Strain Relief |
|
- | |||||
| 15 | WPW10339879 | Cable Tie (3) (Replaces: 309330) |
|
$ 7.11 | |||||
| 17 | 310410 | Screw |
|
- | |||||
| 17 | 328709 | Knob, Thermostat |
|
- | |||||
| 18 | 328707 | Knob, Selector |
|
- | |||||
| 18 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.03 | ||||
| 18 | 310410 | Screw |
|
- | |||||
| 19 | 312785 | Frame, Control Panel |
|
- | |||||
| 19 | 161463 | Screw, 10a X 2 |
|
- | |||||
| 19 | WP488627 | Screw (2) (Replaces: 342055) |
|
$ 6.81 | |||||
| 20 | 308660 | Filler, Control Panel |
|
- | |||||
| 20 | 254225 | Screw, 8bt X 1/4 (3) |
|
- | |||||
| 21 | 313515 | Glass, Control Panel |
|
- | |||||
| 22 | 306393 | Retainer, Glass (10) |
|
- | |||||
| 23 | 308298 | Seal, Foam |
|
- | |||||
| 24 | 313307 | Knob, Control (4) |
|
$ 15.94 | |||||
| 25 | 308350 | Bezel Control Knob (4) |
|
- | |||||
| 26 | 308348 | Spring, Bezel (4) |
|
- | |||||
| 27 | 313311 | Spring (3) |
|
- | |||||
| 27 | 330206 | Knob, Timer (3) |
|
- |
