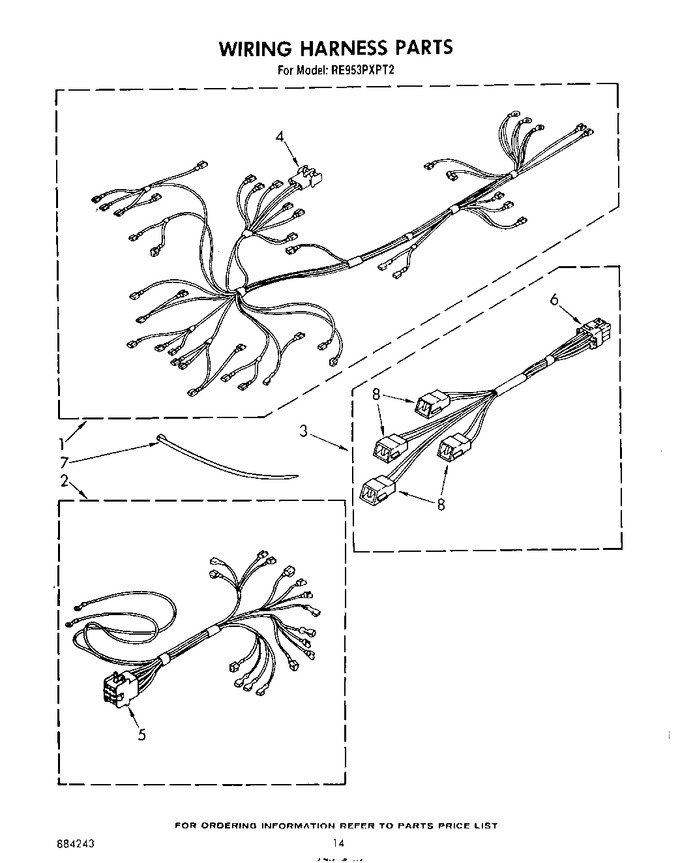

09 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3147720 | Harness, Wiring Main |
|
- | |||||
| 2 | 3147718 | Harness, Wiring Infinite Switch |
|
- | |||||
| 3 | 311176 | Harness Wiring (surface Unit) |
|
- | |||||
| 4 | 309105 | Connector Housing |
|
- | |||||
| 5 | 309409 | Cap, Female |
|
- | |||||
| 6 | 309406 | Plug, Male |
|
- | |||||
| 7 | WPW10339879 | Cable, Tie (Replaces: 309330) |
|
$ 7.11 | |||||
| 8 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 8 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 8 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 8 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 8 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 8 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 8 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 8 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 8 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 8 | 261888 | New Avocado |
|
- | |||||
| 8 | 261886 | Coffee |
|
- | |||||
| 8 | 261890 | Harvest Gold |
|
- | |||||
| 8 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 8 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 8 | 206925 | Leveler (thinner) (2oz.) |
|
- | |||||
| 8 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 8 | 978883 | Almond (uncut) |
|
- | |||||
| 8 | 261889 | New Avocado (uncut) |
|
- | |||||
| 8 | 261887 | Coffee (uncut) |
|
- | |||||
| 8 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 8 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 8 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 8 | 261748 | Touch-up Continuous Clean (1 Oz.) |
|
- | |||||
| 8 | 261582 | Grease |
|
- | |||||
| 8 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 8 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 8 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 8 | 242985 | Rotisserie Kit (rck 81) |
|
- | |||||
| 8 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 8 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 8 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 8 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 8 | 330031 | Receptacle |
|
Immediately | $ 14.48 | ||||
| 8 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 8 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 8 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 8 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 8 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 8 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 8 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| LIT313295 | Guide, Use & Care |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| LIT884243 | List, Repair Parts |
|
- | ||||||
| LIT313480 | Installation Instructions |
|
- | ||||||
| LIT313358 | Guide, Cooking |
|
- |
