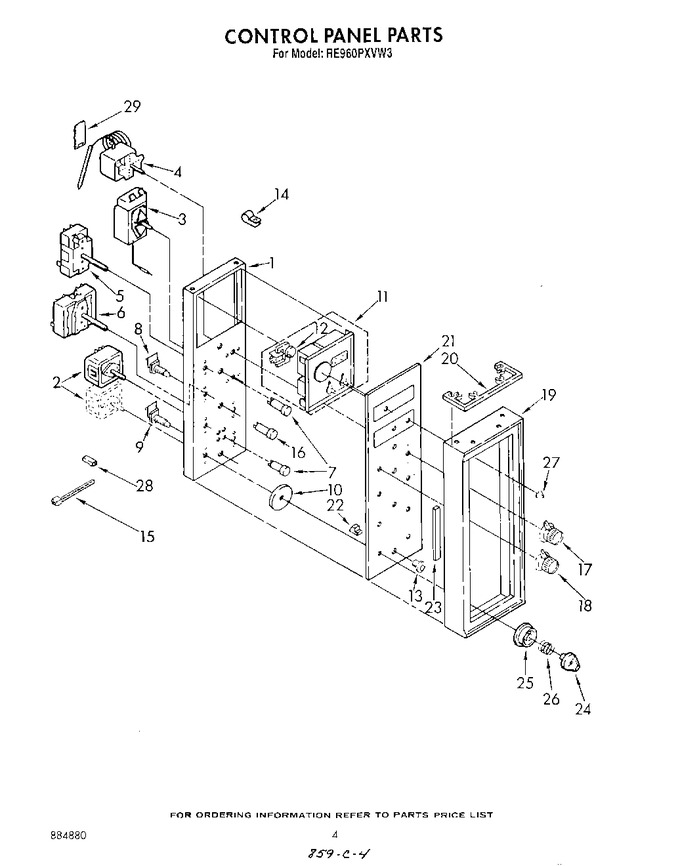

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-32 X 1/2 (2)   (Replaces: 690989)			Immediately	$ 7.07
1	3170226		Panel, Control		Appelez-nous	-
2	308119		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
2	308475		Switch, Infinite (4)		Appelez-nous	-
3	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
3	3148935		Thermostat, Oven (pyro)		Appelez-nous	-
4	308486		Thermostat (upper Oven)		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
5	310350		Switch, Selector (4 Position)		Appelez-nous	-
6	310007		Switch, Selector (pyro)		Appelez-nous	-
6	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
7	311550		Light, Indicator 250v (6)		Appelez-nous	-
8	312370		Switch, Fluorescent Light		Appelez-nous	-
9	312796		Washer		Appelez-nous	-
9	312581		Switch, Oven Light		Appelez-nous	-
10	308352		Skirt, Knob (4)		Appelez-nous	-
11	313519		Timer, Digital (includes Illus. 12)		Appelez-nous	-
11	WP313808		Screw, 6-32 X 1/4 (3)   (Replaces: 311932)				$ 6.84
11	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
11	WP488627		Screw, 8a X 1/2 (4)   (Replaces: 338156)				$ 6.81
12	308594		Motor, Timer		Appelez-nous	-
13	313030		Bezel, Switch (2)		Appelez-nous	-
14	WPY308615		Strain Relief   (Replaces: 308615)				$ 312.87
14	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
14	WP3390631		Screw, 10 X 3/8 (2)   (Replaces: 309112)				$ 7.04
15	WPW10339879		Cable Tie (3)   (Replaces: 309330)				$ 7.11
16	3148721		Indicator Light, Lock (1)		Appelez-nous	-
17	310410		Screw		Appelez-nous	-
17	328709		Knob, Thermostat		Appelez-nous	-
18	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.03
18	310410		Screw		Appelez-nous	-
18	328707		Knob, Selector		Appelez-nous	-
19	312785		Frame, Control Panel		Appelez-nous	-
19	161463		Screw, 10a X 2		Appelez-nous	-
19	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
20	308660		Filler, Control Panel		Appelez-nous	-
20	254225		Screw, 8bt X 1/4 (3)		Appelez-nous	-
21	3149020		Glass, Control Panel		Appelez-nous	-
22	306393		Retainer, Glass (10)		Appelez-nous	-
23	308298		Seal, Foam		Appelez-nous	-
24	313307		Knob, Control (4)				$ 15.94
25	308350		Bezel Control Knob (4)		Appelez-nous	-
26	308348		Spring, Bezel (4)		Appelez-nous	-
27	330206		Knob, Timer (3)		Appelez-nous	-
27	313311		Spring (3)		Appelez-nous	-
28	307772		Housing Receptacle		Appelez-nous	-
28	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
29	3150044		Insulator (thermostat)		Appelez-nous	-
