02 - Cooktop
03 - Control Panel
04 - Lower Oven
05 - Door And Drawer
06 - Upper Oven
07 - Upper Oven Door And Unit
08 - Oven , Literature And Optional
09 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

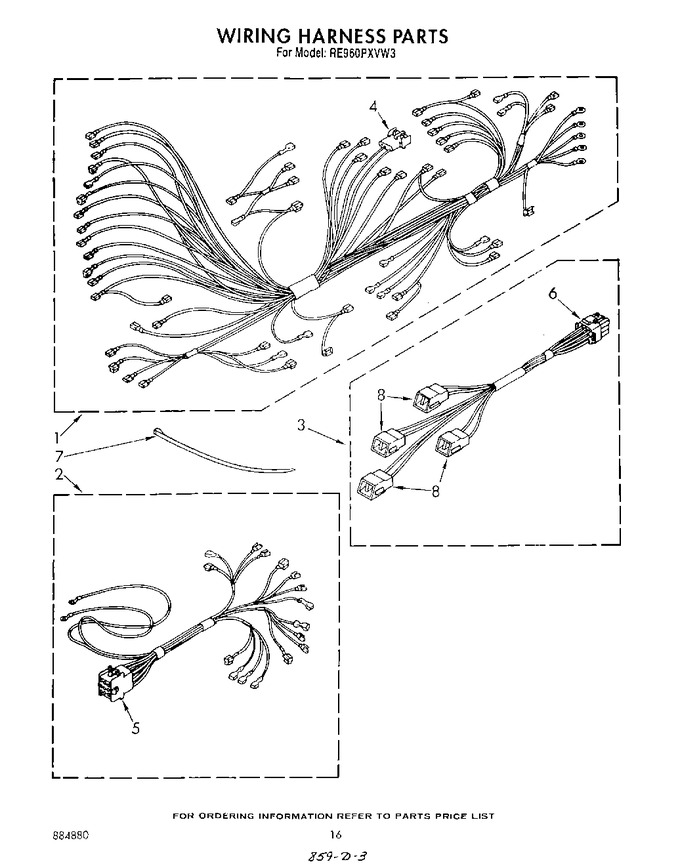

| 1 | 3149000 | Harness, Wiring Main |
|
- | |||||
| 2 | 3147718 | Harness, Wiring Infinite Switch |
|
- | |||||
| 3 | 3149254 | Harness, Wiring Surface Unit |
|
- | |||||
| 4 | 309105 | Connector Housing |
|
- | |||||
| 5 | 309409 | Cap, Female |
|
- | |||||
| 6 | 309406 | Plug, Male |
|
- | |||||
| 7 | WPW10339879 | Cable, Tie (Replaces: 309330) |
|
$ 7.11 | |||||
| 8 | 330031 | Receptacle |
|
Immediately | $ 14.48 |
