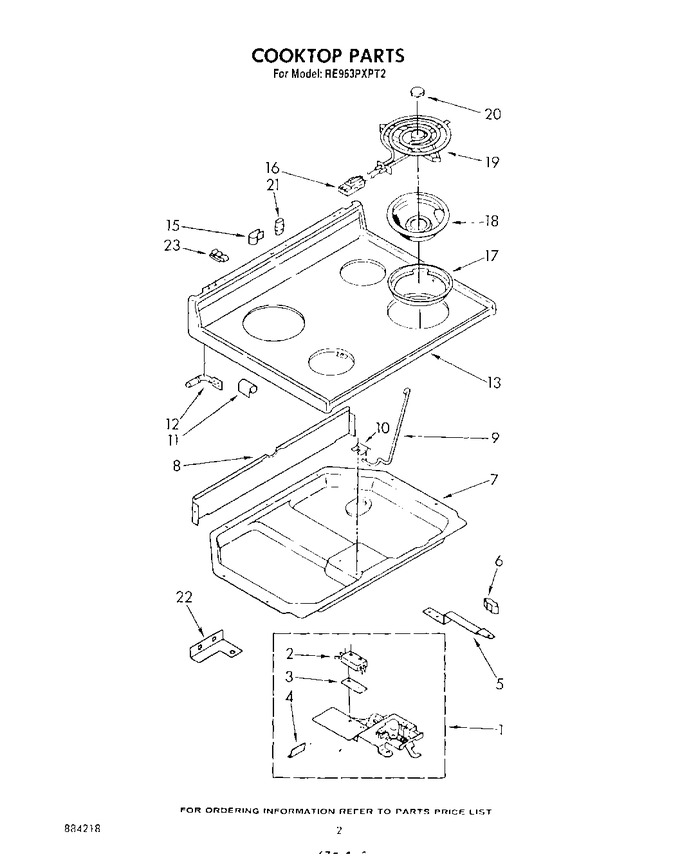

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	328585		Latch Assembly (pyro)		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	311056		Screw (2)		Appelez-nous	-
5	307976		Handle, Latch		Appelez-nous	-
5	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 6.81
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
6	307977		Knob, Latch		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
7	307929		Burner Box		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
8	307973		Shield, Wiring		Appelez-nous	-
9	307968		Rod, Cooktop		Appelez-nous	-
10	307967		Retainer, Cooktop		Appelez-nous	-
10	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
13	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
13	309922		Cooktop (chrome)		Appelez-nous	-
15	WP308605		Strain Relief   (Replaces: 308604)				$ 10.08
15	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
16	330031		Receptacle Clip (4)   (Replaces: 3147829)			Immediately	$ 14.48
16	WP313808		Screw, 6-32 X 1/4 (4)   (Replaces: 313808)				$ 6.84
17	W10858781		Adapter Ring 8`` (2)   (Replaces: 306786)				$ 85.64
17	W10854470		Adapter Ring 6`` (2)   (Replaces: 306785)				$ 81.37
18	W10291024		Reflector Pan (8`` (2))   (Replaces: 306790)			Immediately	$ 49.90
18	W10291024		Reflector Pan 6`` (2)   (Replaces: 306789)			Immediately	$ 49.90
19	WP660532		Unit, Surface 6`` (240v) (2)   (Replaces: 660529)			Immediately	$ 36.90
19	WP660532		Unit, Surface 6`` (240v) (2) (alt.)   (Replaces: 309192)			Immediately	$ 36.90
19	WP660532		Unit, Surface 6`` (240v) (2) (alt.)   (Replaces: 313967)			Immediately	$ 36.90
20	256904		Medallion (4)		Appelez-nous	-
21	WP75614		Connector (3)   (Replaces: 309551)				$ 44.41
22	312320		Shield, Insulation		Appelez-nous	-
22	307748		Screw, 10a X 1/2		Appelez-nous	-
23	313570		Clamp, Tube		Appelez-nous	-
	WP660533		(alt.)   (Replaces: 309186)			Immediately	$ 39.47
	WP660533		(alt.) (includes Illus. 20)   (Replaces: 313965)			Immediately	$ 39.47
	WP660533		Unit, Surface 8`` (240v) (2)   (Replaces: 660531)			Immediately	$ 39.47
