02 - Cook Top


03 - Door And Drawer


04 - Control Panel


05 - Upper Oven

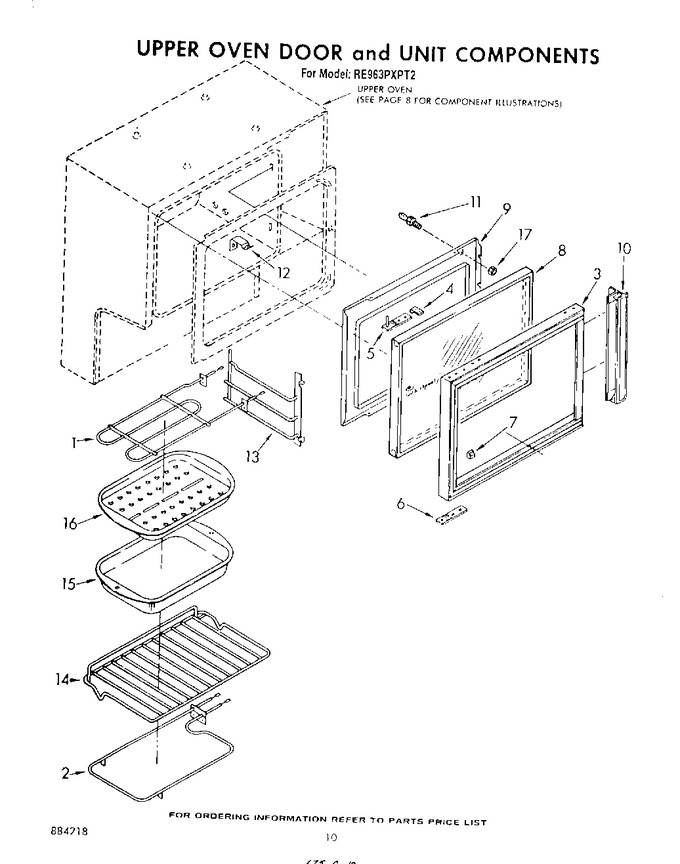

06 - Upper Oven Door And Unit Components


07 - Lower Oven , Literature And Optional


08 - Section


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	306138		Unit, Broil		Appelez-nous	-
1	246127		Screw, 10-32 X 5/8		Appelez-nous	-
2	246127		Screw, 10-32 X 5/8		Appelez-nous	-
2	306083		Unit, Bake		Appelez-nous	-
3	312786		Frame, Door		Appelez-nous	-
4	309090		Broil Stop		Appelez-nous	-
5	328181		Plate, Hinge		Appelez-nous	-
5	138479		Washer		Appelez-nous	-
6	306260		Plate Hinge Plated (2)		Appelez-nous	-
6	138479		Washer		Appelez-nous	-
7	311599		Cushion, Window (9)		Appelez-nous	-
8	312517		Window, Oven Door		Appelez-nous	-
8	WP488627		Screw (4)   (Replaces: 342055)				$ 6.81
9	313791		Liner, Door		Appelez-nous	-
9	WP488627		Screw (4)   (Replaces: 342055)				$ 6.81
10	314133		Handle, Connoisseur		Appelez-nous	-
10	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
10	309133		Screw, 8-a X 5/8 (2)		Appelez-nous	-
11	313794		Strike, Door Catch		Appelez-nous	-
12	254217		Screw, 10a X 3/8		Appelez-nous	-
12	309091		Spring, Broil Stop		Appelez-nous	-
13	306371		Support, Oven Rack (2)		Appelez-nous	-
14	306672		Rack, Upper Oven		Appelez-nous	-
15	4396923		Pan, Broil (upper Oven)   (Replaces: 263062)			Immediately	$ 52.04
16	4396923		Rack, Broil Pan   (Replaces: 263063)			Immediately	$ 52.04
17	WP488130		Nut, 8-32   (Replaces: 313826)				$ 6.27

    View Diagram in Separate Window       Print Part List
