Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9750330 Handle, Door Appelez-nous -
2 423857 Spacer, Handle (2) Appelez-nous -
2 WPW10001180 Screw, (2) 10-24 X 1/2   (Replaces: 9750890) Special Order $ 7.23

3 9780270 Screw, (2) Appelez-nous -
3 9782034 Hinge, Door R Or L Appelez-nous -
3 9780265 Screw, (4) Appelez-nous -
3 3149333 Screw (4) Special Order $ 5.33

4 9781725GW Panel, Door Appelez-nous -
5 9780265 Screw, (4) Appelez-nous -
5 9781613 Retainer, Glass (4) Appelez-nous -
6 421474 Glass, Inner-outer Appelez-nous -
7 422642 Gasket, Oven Glass Appelez-nous -
8 9780265 Screw (2) 10 X 3/8 Appelez-nous -
8 9780672GM Liner, Door Appelez-nous -
9 9750796 Drawer & Roller Appelez-nous -
11 9781164PW Front, Drawer Appelez-nous -
11 WP90296 Clip   (Replaces: 90296) Special Order $ 7.07

11 423247 Screw, (4) Appelez-nous -
12 814229 Support, Roller   (Replaces: 423713) In-Stock Immediately $ 51.23


    View Diagram in Separate Window     Print Icon   Print Part List

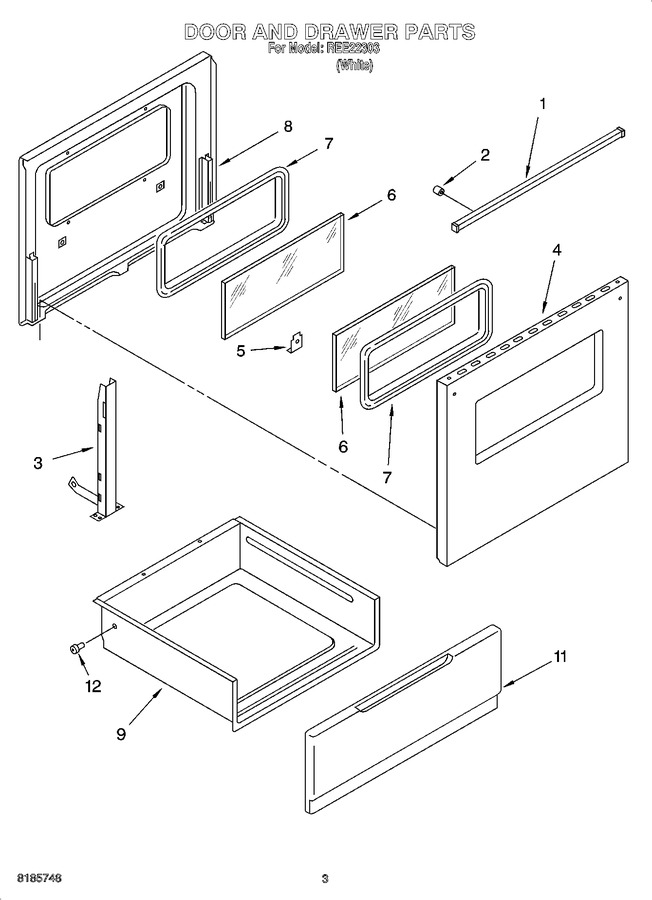

Diagram for REE22303
