01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts

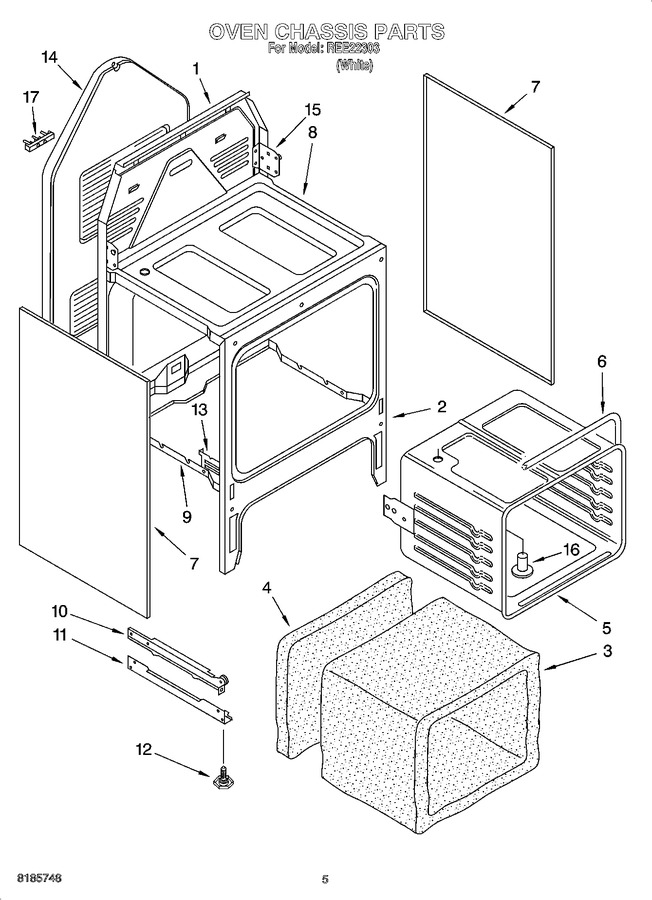

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750486		Main Chassis, Back		Appelez-nous	-
2	9750473GM		Chassis, Front		Appelez-nous	-
3	9754002		Insulation, Wrap		Appelez-nous	-
4	9754137		Insulation, Back		Appelez-nous	-
5	9750621GM		Oven Liner		Appelez-nous	-
6	9750692		Gasket, Oven		Appelez-nous	-
7	9780265		Screw		Appelez-nous	-
7	9781907PW		Panel, Side		Appelez-nous	-
8	9750481		Box, Burner		Appelez-nous	-
8	9780275		Screw		Appelez-nous	-
8	9780265		Screw		Appelez-nous	-
9	9780265		Screw		Appelez-nous	-
9	9750166		Bottom, Oven		Appelez-nous	-
10	9780265		Screw		Appelez-nous	-
10	9750223		Rail, Drawer (left Hand)		Appelez-nous	-
10	9750224		Rail, Drawer (right Hand)		Appelez-nous	-
11	9750147		Rail, Bottom		Appelez-nous	-
11	9780265		Screw		Appelez-nous	-
12	WPW10058460		Leg, Leveler   (Replaces: 312701)			Immediately	$ 7.07
13	9780272		Screw		Appelez-nous	-
13	9782005		Hinge, Base		Appelez-nous	-
13	9780265		Screw		Appelez-nous	-
14	9750150		Panel, Rear		Appelez-nous	-
14	423247		Screw		Appelez-nous	-
15	9750258		Hinge Cooktop (left Hand)		Appelez-nous	-
15	9780265		Screw		Appelez-nous	-
15	9750416		Hinge Cooktop (right Hand)		Appelez-nous	-
16	9780851		Tube, Vent		Appelez-nous	-
17	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
17	98884		Screw (2)		Appelez-nous	-
17	WP112432		Nut (4)   (Replaces: 112432)				$ 7.16
