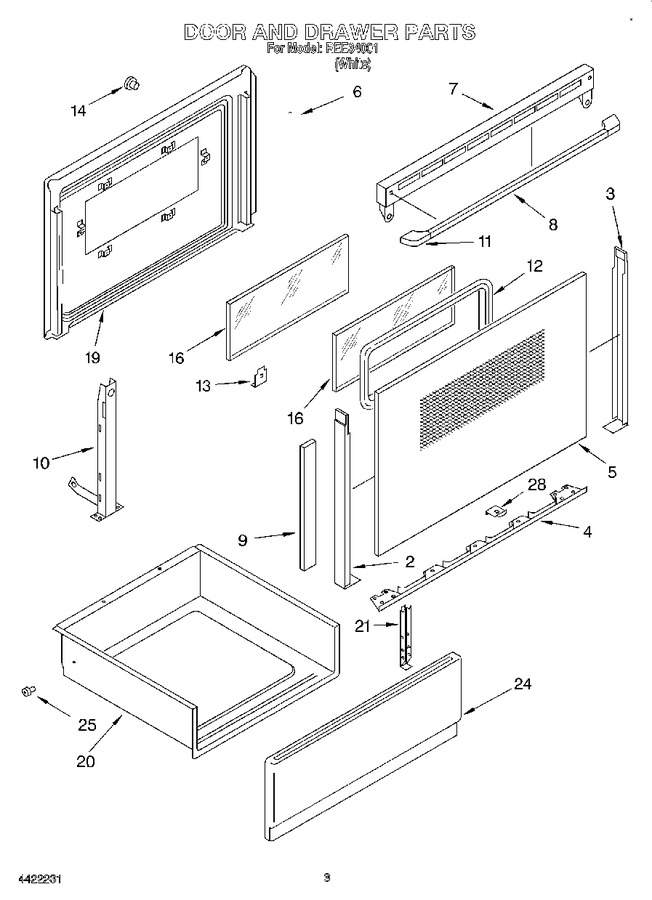

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9750631PB		Trim, Door-left		Appelez-nous	-
3	9750632PB		Trim, Door-right		Appelez-nous	-
4	9781209PB		Trim, Door Bottom		Appelez-nous	-
4	9780265		Screw, (4)		Appelez-nous	-
5	3191135		Glass, Door Front (black)		Appelez-nous	-
6	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
6	9750676		Retainer, Door (2)		Appelez-nous	-
7	9780266		Screw (2)		Appelez-nous	-
7	9781166GB		Vent, Door		Appelez-nous	-
7	9781490		Seal, Door (2)		Appelez-nous	-
7	9781659		Gasket, Door Vent		Appelez-nous	-
8	9780266		Screw (2)		Appelez-nous	-
8	9751690PB		Handle, Door		Appelez-nous	-
9	9781449		Gasket, Door Glass (4)		Appelez-nous	-
10	9750235		Hinge, Door R Or L		Appelez-nous	-
10	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
11	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
11	9781576		End Cap, Handle (r Or L)		Appelez-nous	-
13	9780265		Screw, (4)		Appelez-nous	-
13	9781613		Retainer, Glass (4)		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 72.68
16	9781651		Inner Glass, Clear		Appelez-nous	-
19	9781599GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	WP90296		Clip   (Replaces: 90296)				$ 7.07
21	9750169		Bracket, Drawer		Appelez-nous	-
21	9780272		Screw (4)		Appelez-nous	-
24	9750168PW		Front, Drawer (white)		Appelez-nous	-
25	814229		Roller, Support (2)   (Replaces: 423713)			Immediately	$ 51.23
28	9781502		Spacer, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
