SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer

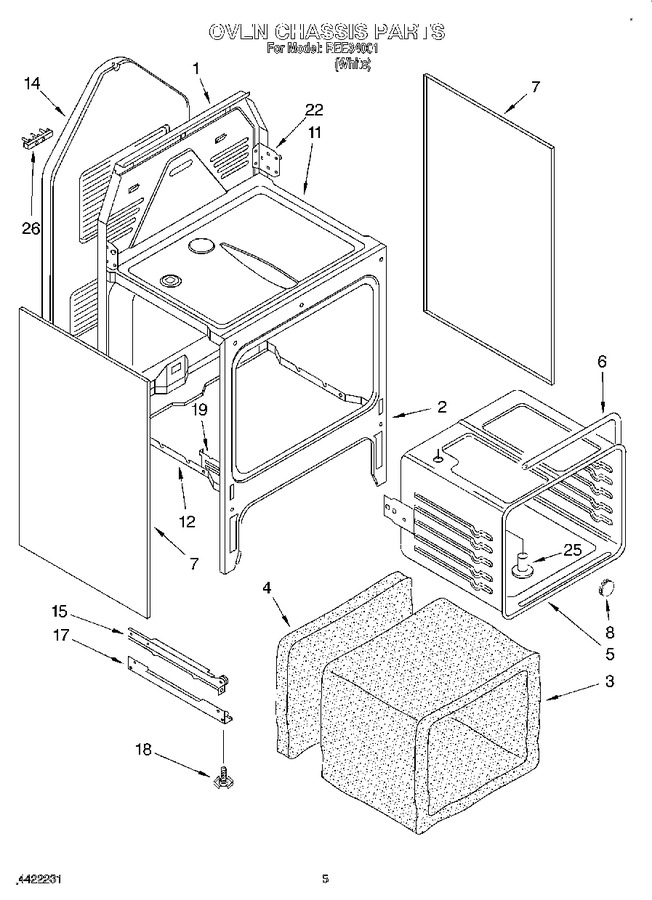

04 - Oven Chassis


05 - Oven, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750146		Main Chassis, Back		Appelez-nous	-
2	9750477GM		Chassis, Front		Appelez-nous	-
3	9750392		Insulation, Wrap		Appelez-nous	-
4	9750388		Insulation, Rear		Appelez-nous	-
5	9781294GM		Oven Liner		Appelez-nous	-
6	9750691		Gasket, Oven		Appelez-nous	-
7	9780265		Oven , Side Panel (screw (4))		Appelez-nous	-
7	9750148PW		Oven , Side Panel (white, L Or R)		Appelez-nous	-
8	9780578		Button, Plug		Appelez-nous	-
11	9750479GM		Burner Box		Appelez-nous	-
11	83205		Washer (3)		Appelez-nous	-
11	9780275		Screw, (2) 8 X 3/8		Appelez-nous	-
11	9780265		Screw (7) 10 X 3/8		Appelez-nous	-
12	9780265		Screw (9) 10 X 3/8		Appelez-nous	-
12	9750142		Oven Bottom		Appelez-nous	-
14	9750150		Panel, Rear		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
15	9750224		Rail, Drawer (right)		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
17	9780265		Screw, (8) 10 X 3/8		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
19	9780272		Screw, (2) 10 X 1/2		Appelez-nous	-
19	9750149		Hinge, Receiver (r Or L)		Appelez-nous	-
22	9750258		Hinge, Cktp.-left		Appelez-nous	-
22	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
22	9750416		Hinge, Cktp.-right		Appelez-nous	-
25	9750391		Vent Tube		Appelez-nous	-
26	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
26	98884		Screw (2)		Appelez-nous	-
26	WP112432		Nut (4)   (Replaces: 65034700)				$ 7.16

    View Diagram in Separate Window       Print Part List
