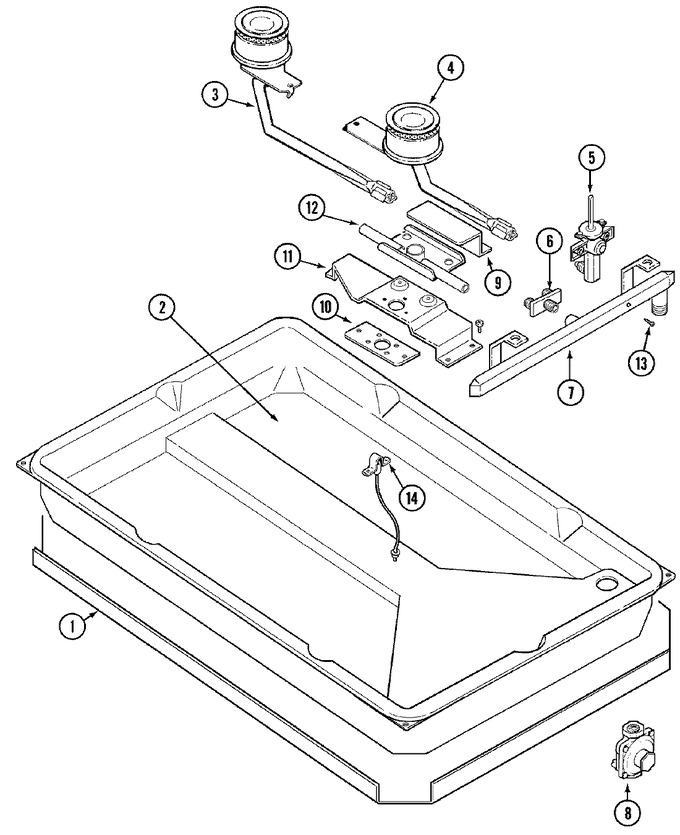

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F185-51 | Baffle, Bottom | 01 |
|
- | ||||
| 2 | 4011F140-23 | Bottom, Burner Box | 01 |
|
- | ||||
| 2 | 4011F243-19 | Box, Burner | 11 |
|
- | ||||
| 3 | 7505P231-60 | Burner, Top (lt) | 11 |
|
- | ||||
| 3 | 7505P160-60 | Burner, Top Left | 01 |
|
- | ||||
| 4 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 4 | 7505P161-60 | Burner, Top Right | 01 |
|
- | ||||
| 4 | 7505P230-60 | Burner, Top (rt) | 11 |
|
- | ||||
| 5 | 7502P121-60 | Valve, Hi-med-lo | 01 |
|
- | ||||
| 5 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 5 | 74001251 | Valve, Burner | 11 |
|
- | ||||
| 5 | 7724P004-60 | Cover, Burner Valve | 01 |
|
- | ||||
| 6 | 7507P001-60 | Filter, Pilot | 01 |
|
- | ||||
| 6 | W10124350 | Not Required Part Or See Note Not Required | 11 |
|
- | ||||
| 7 | 7513P146-60 | Pipe, Manifold | 11 |
|
- | ||||
| 7 | 7513P059-60 | Pipe, Manifold | 01 |
|
- | ||||
| 8 | W11170853 | Regulator, Pressure (Replaces: 74001252) | 11 |
|
$ 283.08 | ||||
| 8 | 7510P017-60 | Regulator, Press Nat | 01 |
|
- | ||||
| 9 | 3604F065-45 | Support, Pilot | 01 |
|
- | ||||
| 10 | 3807F334-35 | Support, Pilot | 01 |
|
- | ||||
| 11 | 3807F101-34 | Support, Burner | 01 |
|
- | ||||
| 12 | 7506P012-60 | Tube, Flash | 01 |
|
- | ||||
| 13 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 14 | 7101P357-60 | Screw | 11 |
|
- | ||||
| 14 | 7505P159-60 | Burner, Pilot 18-3/4 | 01 |
|
- | ||||
| 14 | 7505P235-60 | Pilot, Burner | 11 |
|
- |
