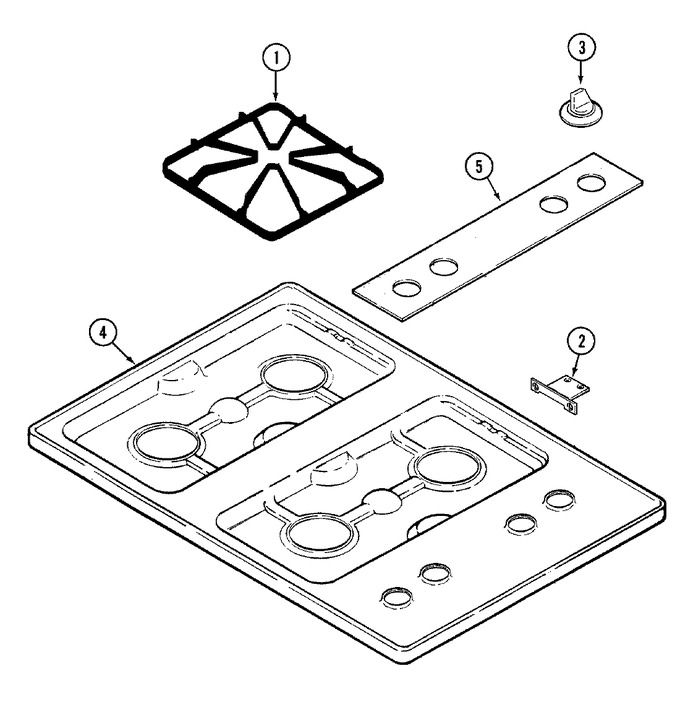

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 2 | 7106P017-60 | Hinge, Top | 01 |
|
- | ||||
| 2 | 7103P110-60 | Nut, Pal | 01 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P261-60) | 01 |
|
Immediately | $ 6.85 | |||
| 3 | 7733P045-60 | Knob, Burner (black) | 01 |
|
$ 16.33 | ||||
| 3 | WP74001253 | Knob, Top Burner (blk) (Replaces: 74001253) | 11 |
|
$ 19.77 | ||||
| 4 | 2001W067-81 | Top, Main (wht) | 01 |
|
- | ||||
| 5 | 7720P146-60 | Panel, Control (blk) | 01 |
|
- | ||||
| 6 | 74001205 | Manual, Use & Care | 01 |
|
- | ||||
| 7 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
