SELECT A DIAGRAM

Diagram for 02 - Cook Top
02 - Cook Top

Diagram for 03 - Door And Drawer
03 - Door And Drawer

Diagram for 04 - Control Panel
04 - Control Panel

Diagram for 05 - Oven
05 - Oven

Diagram for 06 - Literature And Optional
06 - Literature And Optional

Diagram for 07 - Wiring Harness
07 - Wiring Harness


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP308605 Strain, Relief   (Replaces: 308605) Special Order $ 10.08

1 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

2 307872 Cooktop (almond) Appelez-nous -
2 307870 Cooktop (white) Appelez-nous -
2 WP681414 Cooktop (screw 10-32 X 1/2)   (Replaces: 690989) In-Stock Immediately $ 7.07

3 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.07

3 307965 Bracket, Cooktop Appelez-nous -
4 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.07

4 307966 Hinge Pin, Cooktop Appelez-nous -
5 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

5 307973 Shield, Wiring Appelez-nous -
6 WP3390631 Screw, 10a X 3/8 (4)   (Replaces: 309112) Special Order $ 7.04

6 307929 Burner Box Appelez-nous -
7 309926 Medallion (4) Appelez-nous -
8 WP313808 Screw, 6-32 X 9/32 (4)   (Replaces: 313808) Special Order $ 6.84

8 330031 Receptacle Clip (4)   (Replaces: 3147829) In-Stock Immediately $ 14.48

10 WP660532 Unit, Surface 6`` (3) (240v) (includes Illus. 7) Alt.   (Replaces: 309191) In-Stock Immediately $ 36.90

10 WP660532 Unit, Surface 6`` (3) (240v) (includes Illus. 7)   (Replaces: 660528) In-Stock Immediately $ 36.90

10 WP660532 Unit, Surface 6`` (3) (240v) (includes Illus. 7) Alt.   (Replaces: 309249) In-Stock Immediately $ 36.90

11 WPW10196406 Pan (6`` (3))   (Replaces: 308539) In-Stock Immediately $ 12.05

11 W10196405RW Pan (8`` (1))   (Replaces: 308540) In-Stock Immediately $ 18.70

12 307968 Rod, Cooktop Appelez-nous -
13 WP3390631 Screw, 10a X 3/8   (Replaces: 309112) Special Order $ 7.04

13 307967 Retainer, Cooktop Appelez-nous -
WP660533 (alt.)   (Replaces: 309185) In-Stock Immediately $ 39.47

WP660533 Alt.   (Replaces: 309216) In-Stock Immediately $ 39.47

WP660533 Unit, Surface 8`` (1) (240v) (includes Illus. 7)   (Replaces: 660530) In-Stock Immediately $ 39.47


    View Diagram in Separate Window     Print Icon   Print Part List

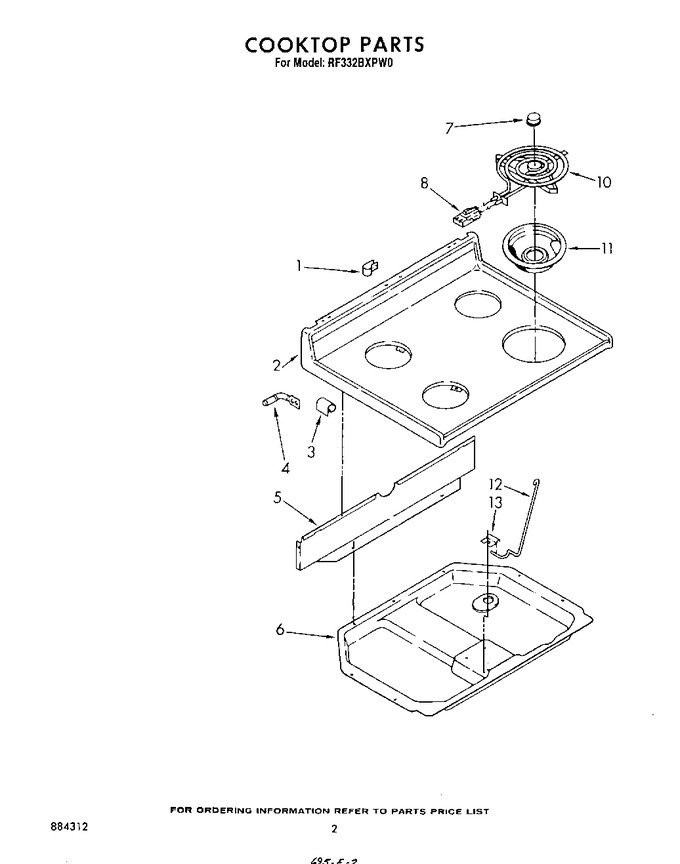

Diagram for RF332BXPW0
