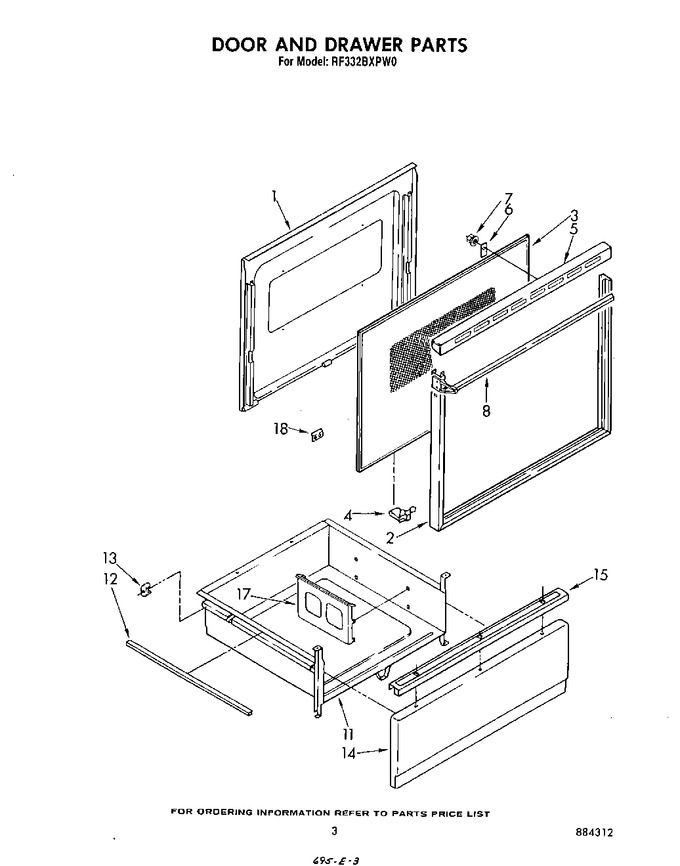

03 - Door And Drawer


04 - Control Panel


05 - Oven


06 - Literature And Optional


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329686		Liner, Door		Appelez-nous	-
2	310427		Frame, Door		Appelez-nous	-
3	00573829		Glass, Outer   (Replaces: 310655)			Immediately	$ 27.48
4	310706		Clip, Glass (10)		Appelez-nous	-
5	310784		Top, Door Frame		Appelez-nous	-
6	310705		Hold Down, Glass (2)		Appelez-nous	-
7	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
8	312722		Handle, Door				$ 118.10
8	WP355515		Screw, 8 X 7/8 (4)   (Replaces: 355515)				$ 6.90
11	327887		Drawer, Utility		Appelez-nous	-
12	309329		Protector, Drawer Slide (2)		Appelez-nous	-
13	307980		Glide, Rear (2)		Appelez-nous	-
13	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
14	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
14	307939		Panel, Drawer (almond)		Appelez-nous	-
14	307935		Panel Drawer (white)		Appelez-nous	-
15	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
15	313337		Handle, Drawer		Appelez-nous	-
17	357645		Rack, Literature		Appelez-nous	-
18	314235		Clip (2)		Appelez-nous	-
