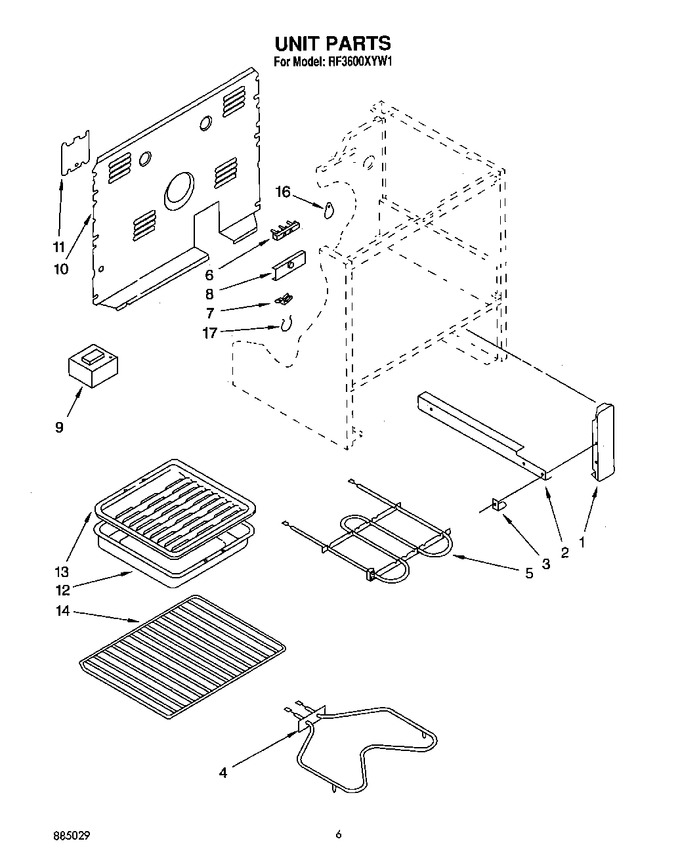

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307981		Bracket, Mounting (2)		Appelez-nous	-
2	3149255		Rail, Rh (includes No.3)		Appelez-nous	-
2	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
2	3149256		Rail, Lh (includes No.3)		Appelez-nous	-
3	3149257		Glide, Front (2)		Appelez-nous	-
4	3150532		Screw, No.10-32 X 7/16 (2)		Appelez-nous	-
4	WP308180		Unit, Bake   (Replaces: 661170)				$ 96.92
5	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
5	WP660579		Unit, Broil   (Replaces: 660579)				$ 140.80
6	WP8203546		Block, Terminal   (Replaces: 3184673)			Immediately	$ 27.12
6	WP112432		Nut (6)   (Replaces: 112432)				$ 7.16
6	98884		Screw, 10-16 X 1 (2)		Appelez-nous	-
7	308498		Ground Strap		Appelez-nous	-
7	313660		Clip		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
8	3150190		Bracket, Service		Appelez-nous	-
9	312804		Block, Balance		Appelez-nous	-
9	340184		Screw (1) 10-16 X 1 1/2				$ 12.10
10	3148975		Cover, Rear		Appelez-nous	-
10	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.07
11	307972		Cover, Service		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
12	4396923		Pan, Broiler   (Replaces: 3169076)			Immediately	$ 52.04
13	4396923		Rack, Broiler   (Replaces: 3147563)			Immediately	$ 52.04
14	308173		Rack, Oven (straight)		Appelez-nous	-
16	311982		Plate, Cover (2)		Appelez-nous	-
16	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
17	8273888A		Anti-tip Kit   (Replaces: 814148)				$ 27.96
17	16515		Harness Clip   (Replaces: 313438)				$ 17.60
17	3169093		Insulation, Wrapper		Appelez-nous	-
17	3169094		Insulation, Oven Back		Appelez-nous	-
