SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Unit


05 - Oven


06 - Wiring Harness, Lit/optional

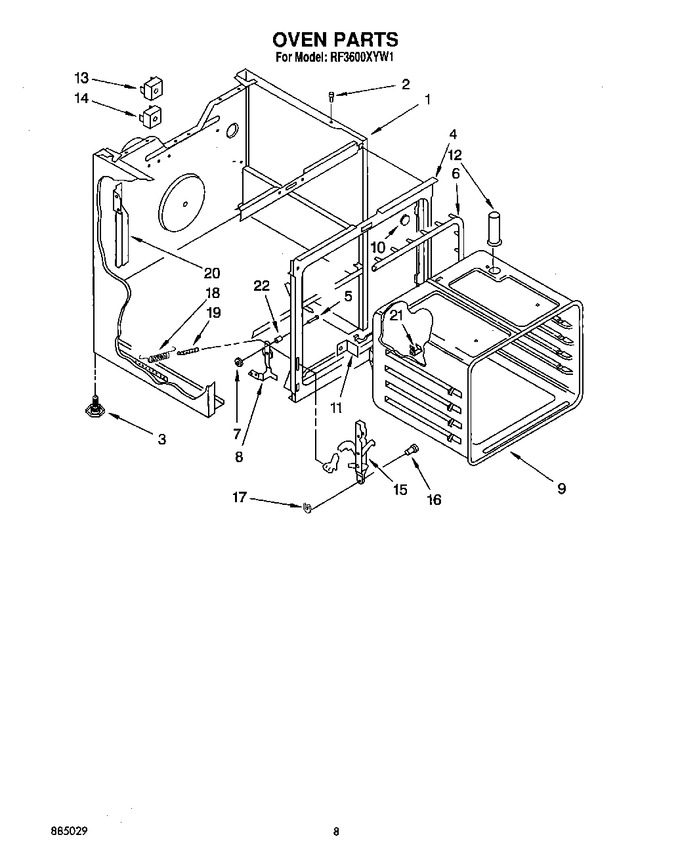

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
1	330086		Main Chassis (white)		Appelez-nous	-
1	WP681414		Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 7.07
1	330090		Main Chassis (almond)		Appelez-nous	-
2	238614		Bumper, Cooktop (2)				$ 72.68
3	WPW10058460		Leg Leveling (4)   (Replaces: 312701)			Immediately	$ 7.07
4	3150537		Screw (1)		Appelez-nous	-
4	3176698		Frame, Front		Appelez-nous	-
4	311056		Screw (2)		Appelez-nous	-
5	307985		Pin, Hinge				$ 29.54
6	3169251		Seal, Door		Appelez-nous	-
7	308306		Pushnut		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
8	3176711		Hinge, L.h.		Appelez-nous	-
8	3176710		Hinge, R.h.		Appelez-nous	-
9	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.07
9	3176612		Oven (30`` Pyro)		Appelez-nous	-
10	308535		Button, Plug		Appelez-nous	-
11	311220		Bracket, Oven (mounting)		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	9755804		Vent, Oven   (Replaces: 3169108)				$ 111.31
12	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
13	314209		Switch, Broil		Appelez-nous	-
13	314215		Screw		Appelez-nous	-
14	314210		Switch, Bake		Appelez-nous	-
14	314215		Screw		Appelez-nous	-
15	3176709		Channel, Arm (2)		Appelez-nous	-
16	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 11.78
17	307594		Ring, Retainer (2)		Appelez-nous	-
18	308127		Spring, Oven Door (2)				$ 11.75
19	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
20	313197		Support, R.h. Channel		Appelez-nous	-
20	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
20	313196		Support, L.h. Channel		Appelez-nous	-
21	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
22	309111		Snubber, Door (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
