SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Oven


04 - Unit, Optional


05 - Door And Drawer


06 - Wiring Harness

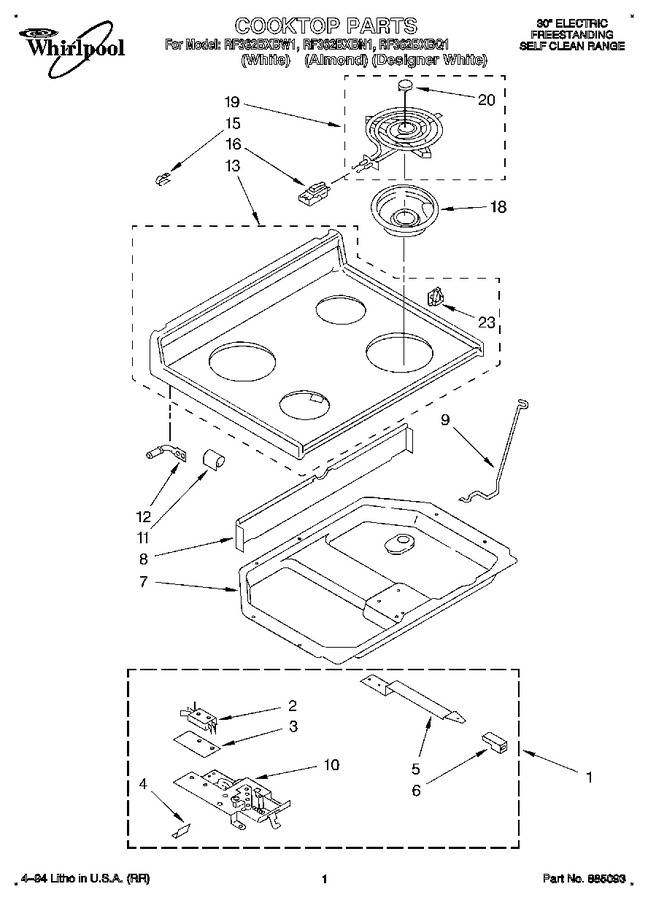

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	3183320		Designer White Mdl		Appelez-nous	-
1	3183322		Latch Asm Complete W/wire Harness		Appelez-nous	-
2	3182741		Safety Switch		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
4	308422		Screw (2)		Appelez-nous	-
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
5	3169081		Handle, Latch		Appelez-nous	-
5	3150175		Designer White Mdl		Appelez-nous	-
5	155023		Screw, 8-18 X 1/4			Immediately	$ 7.91
6	3148684		Knob, Latch		Appelez-nous	-
6	3150174		Knob, Latch (designer White Mdl.)		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
7	3169186		Box, Burner		Appelez-nous	-
8	307973		Shield, Wiring		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
9	3148659		Rod, Cooktop		Appelez-nous	-
10	3148668		Latch Mechanism		Appelez-nous	-
11	307965		Bracket (2)		Appelez-nous	-
11	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
13	3170982		Cooktop (almond)		Appelez-nous	-
13	3170981		Cooktop (white)		Appelez-nous	-
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 14.48
16	WP313808		Screw (4)   (Replaces: 313808)				$ 6.84
18	W10196405RW		Pan-combination (8`` (2))   (Replaces: 3150247)			Immediately	$ 18.70
18	WPW10196406		Pan-combination (6`` (2))   (Replaces: 3150246)			Immediately	$ 12.05
19	WP660532		Unit, Surface (6`` L.f. & R.r.)   (Replaces: 660529)			Immediately	$ 36.90
19	WP660533		Unit, Surface (8`` R.f. & L.r. (includes Illus. 20))   (Replaces: 660531)			Immediately	$ 39.47
20	309195		Medallion (4)		Appelez-nous	-
23	00487887		Screw (4)   (Replaces: 487887)				$ 220.32
23	814102		Nut (4)				$ 5.27
23	814103		Hold Down Clip (4)   (Replaces: 3148790)				$ 9.02
	LIT3187475		Use & Care Guide		Appelez-nous	-
	LIT677973		Manual, Range (do It Yourself)		Appelez-nous	-
	LIT3187321		Instructions, Installation		Appelez-nous	-
	LIT3150400		Installation Instr (templet)		Appelez-nous	-
	LIT3169415		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
