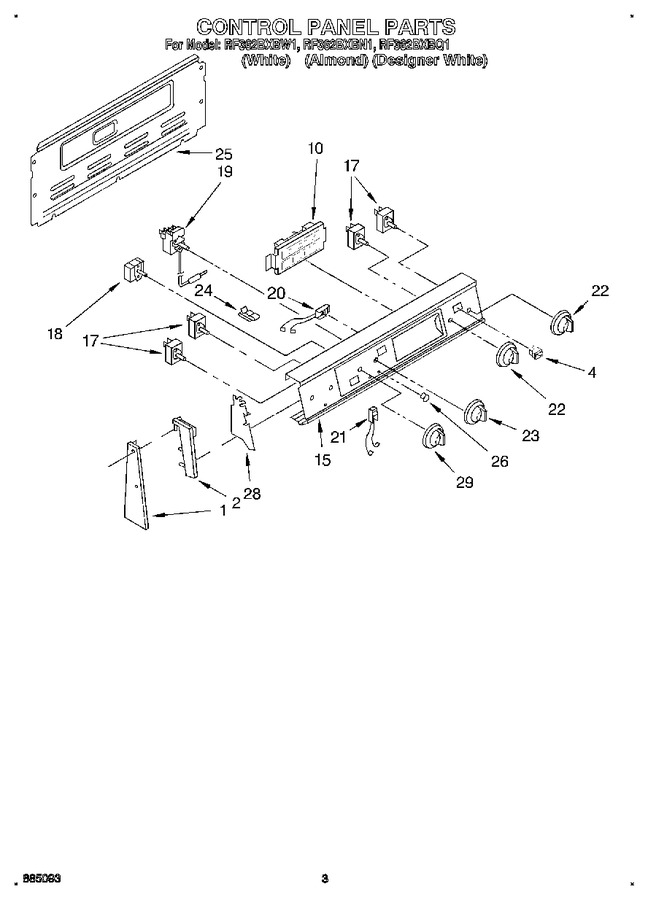

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313191		End Trim R.h.		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.04
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
1	313190		End Trim L.h.		Appelez-nous	-
2	3150442		End Cap L.h.		Appelez-nous	-
2	3150441		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap Designer White Mdl		Appelez-nous	-
2	313230		End Cap Designer White Mdl		Appelez-nous	-
4	3182718		Designer White Mdl		Appelez-nous	-
4	3182717		Switch, Rocker		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
10	3183186		Timer, Electronic		Appelez-nous	-
10	3183187		Designer White Mdl		Appelez-nous	-
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
15	3169403		Designer White Mdl		Appelez-nous	-
15	3169402		Panel, Control		Appelez-nous	-
17	5500-287		Switch, Infinite (6`` (2))   (Replaces: 3148951)			Immediately	$ 47.15
17	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
17	5500-287		Switch, Infinite (8`` (2))   (Replaces: 3148953)			Immediately	$ 47.15
18	WP965173		Screw, 8-32 X 1/4 (2)   (Replaces: 3150344)			Immediately	$ 9.65
18	3148419		Switch, Selector (5 Position)		Appelez-nous	-
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
19	3185625		Thermostat, 0ven Pyro		Appelez-nous	-
20	314031		Light, Indicator (oven Unit)				$ 62.88
21	3183695		Light, Indicator (surface Unit)		Appelez-nous	-
22	3183117		Designer White Mdl				$ 24.34
22	3183118		Knob, (4) (infinite Switch)				$ 23.04
23	3183108		Designer White Mdl		Appelez-nous	-
23	3183105		Knob, Thermostat		Appelez-nous	-
24	313570		Tube Clip		Appelez-nous	-
25	3187332		Rear Cover		Appelez-nous	-
25	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.07
26	313101		Lens, Amber (2)		Appelez-nous	-
28	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
28	313608		Shield, Glass (2)		Appelez-nous	-
29	3183115		Knob (selector)				$ 23.60
29	3183116		Designer White Mdl		Appelez-nous	-
