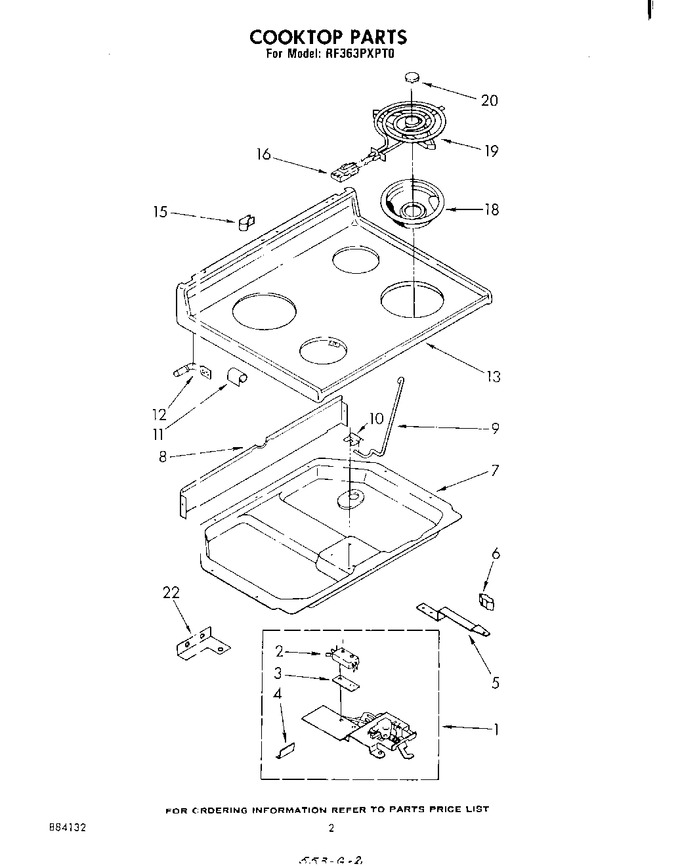

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	328585		Latch Assembly (pyro)		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	307976		Handle, Latch		Appelez-nous	-
5	311056		Screw (2)		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
5	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 6.81
6	307977		Knob, Latch		Appelez-nous	-
7	307929		Burner Box		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
8	307973		Shield, Wiring		Appelez-nous	-
9	307968		Rod, Cooktop		Appelez-nous	-
10	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
10	307967		Retainer, Cooktop		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
13	309922		Cooktop (chrome)		Appelez-nous	-
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
16	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
16	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
18	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 308540)			Immediately	$ 18.70
18	WPW10196406		Reflector Pan (6`` (2))   (Replaces: 308539)			Immediately	$ 12.05
19	WP660532		Unit, Surface 6`` L.f. & R.r. (alt.)   (Replaces: 309249)			Immediately	$ 36.90
19	WP660532		Unit, Surface (6`` L.f. & R.r.)   (Replaces: 660528)			Immediately	$ 36.90
19	WP660532		Unit, Surface 6`` L.f. & R.r. (alt.)   (Replaces: 309191)			Immediately	$ 36.90
20	309195		Medallion (4)		Appelez-nous	-
22	307748		Screw, 10a X 1/2		Appelez-nous	-
22	312320		Shield, Insulation		Appelez-nous	-
	WP660533		(alt.)   (Replaces: 309185)			Immediately	$ 39.47
	WP660533		Unit, Surface 8`` R.f. & L.r.   (Replaces: 660530)			Immediately	$ 39.47
	WP660533		(alt.) (includes Illus. 20)   (Replaces: 309216)			Immediately	$ 39.47
