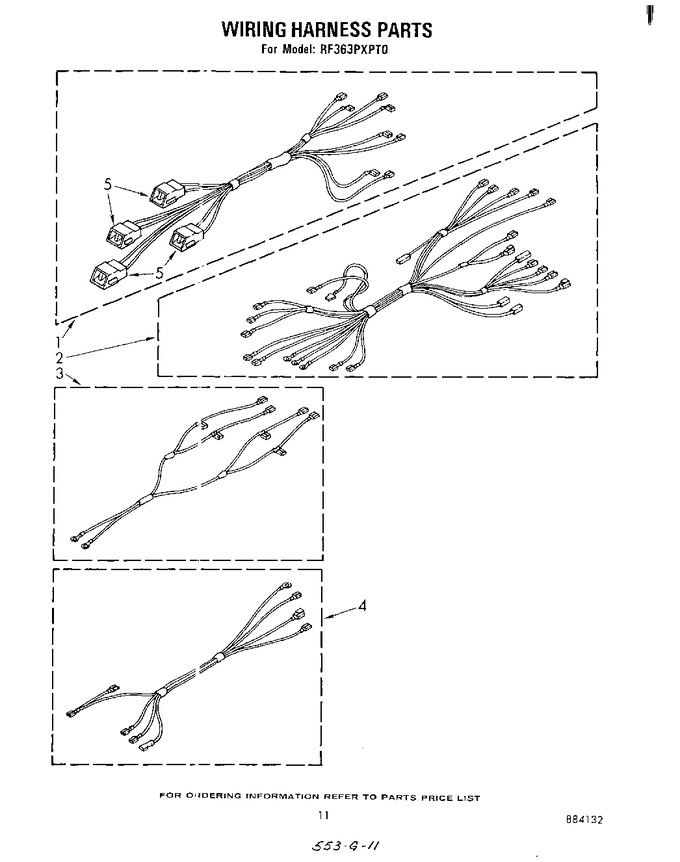

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313148 | Harness, Wire (suface Units) |
|
- | |||||
| 2 | WP312535 | Harness, Wire (oven) (Replaces: 313347) |
|
Immediately | $ 10.25 | ||||
| 3 | 313147 | Harness, Wire (supply) |
|
- | |||||
| 4 | 313346 | Harness, Wire (lock Switch) |
|
- | |||||
| 5 | 330031 | Receptacle |
|
Immediately | $ 14.48 |
