SELECT A DIAGRAM

01 - Front Cover

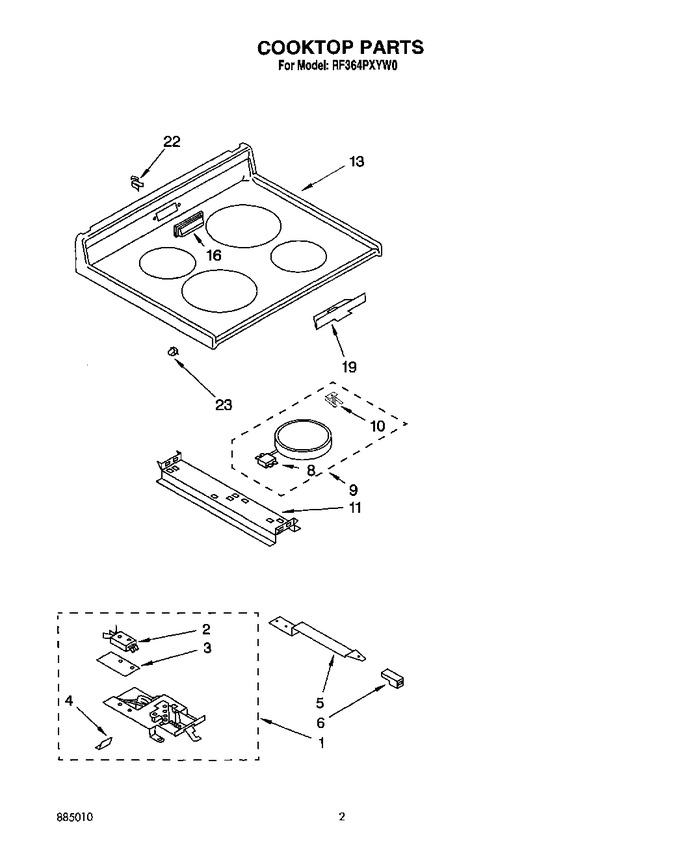

02 - Cooktop, Lit/optional


03 - Control Panel


04 - Door And Drawer


05 - Unit, Optional


06 - Oven


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Latch Asm Complete (screw (2))   (Replaces: 343641)			Immediately	$ 7.07
1	3171153		Latch Asm Complete (white/almond)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Terminal		Appelez-nous	-
4	309258		Screw (2)		Appelez-nous	-
5	308422		Handle, Latch (screw (2))		Appelez-nous	-
5	3169081		Handle, Latch (white/almond)		Appelez-nous	-
5	3150175		Handle, Latch (designer White)		Appelez-nous	-
6	3148684		Knob, Latch (white/almond)		Appelez-nous	-
6	3150174		Knob, Latch (designer White)		Appelez-nous	-
6	155023		Knob, Latch (screw)			Immediately	$ 7.91
8	3183972		Limiter, Temp. (200 Mm - (2))		Appelez-nous	-
8	3183974		Limiter, Temp. (230 Mm - (2))		Appelez-nous	-
9	3183668		Element, Surface (includes No.8) (230 Mm - (2))		Appelez-nous	-
9	3183667		Element, Surface (includes No.8) (200 Mm - (2))		Appelez-nous	-
10	3149191		Spring (8)				$ 9.45
10	WP486754		Screw (8)   (Replaces: 246119)				$ 6.75
11	98520		Screw (4)		Appelez-nous	-
11	3183087		Bracket, Element Support		Appelez-nous	-
13	3184124		Cooktop (designer White)		Appelez-nous	-
13	3184123		Cooktop (almond Mdl.)		Appelez-nous	-
13	3184122		Cooktop (white)		Appelez-nous	-
16	3149012		Cover, Vent (almond)		Appelez-nous	-
16	3149011		Cover, Vent (white)		Appelez-nous	-
19	3183510		Shield, Probe		Appelez-nous	-
22	3149190		Clip, Mounting		Appelez-nous	-
23	311311		Clip, Wire		Appelez-nous	-
	LIT3150283		Use And Care Guide		Appelez-nous	-
	LIT3147395		Instructions, Installation		Appelez-nous	-
	LIT885010		Repair Parts List		Appelez-nous	-
	LIT3183629		Wiring Diagram		Appelez-nous	-
	LIT3182687		Video, Ceran Cooktop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
