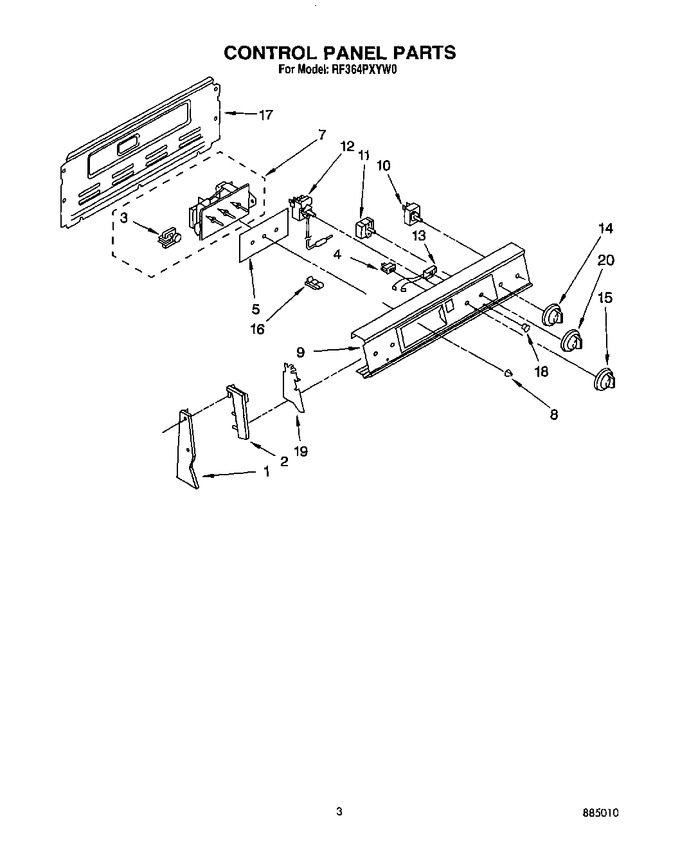

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
1	3183091		End Trim L.h.		Appelez-nous	-
1	3183090		End Trim R.h.		Appelez-nous	-
2	3150441		End Cap (rh-white/almond)		Appelez-nous	-
2	313230		End Cap R.h. (designer White End Cap L.h.)		Appelez-nous	-
2	3150442		End Cap R.h. (white/almond)		Appelez-nous	-
2	313231		End Cap R.h. (designer Model)		Appelez-nous	-
2	254225		End Cap, R.h. (screw 8bt X 1/4 (4))		Appelez-nous	-
3	309822		Motor, Timer		Appelez-nous	-
4	3149360		Switch, Rocker (designer White)				$ 89.01
4	WP4314961		Switch, Rocker (white/almond)   (Replaces: 3148564)				$ 80.53
5	313513		Glass, Timer		Appelez-nous	-
7	3183063		Timer, Control (white/almond)		Appelez-nous	-
7	WP965173		Timer, Control (screw (2))   (Replaces: 246132)			Immediately	$ 9.65
7	3183064		Timer, Control (designer White)		Appelez-nous	-
8	3169182		Knob, (3) Timer (white/almond)		Appelez-nous	-
8	3169184		Knob, (3) Timer (designer White)		Appelez-nous	-
9	312604		Panel, Control (screw, 8-18 X 5/8 (4))		Appelez-nous	-
9	3183817		Panel, Control (white/almond)		Appelez-nous	-
9	3183818		Panel, Control (designer White)		Appelez-nous	-
10	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 6.61
10	WP3148952		Switch, Infinite (6`` Unit (2))   (Replaces: 3148952)			Immediately	$ 62.56
10	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 47.15
11	WP965173		Screw (2)   (Replaces: 3150344)			Immediately	$ 9.65
11	3148419		Switch, Selector (5 Position)		Appelez-nous	-
12	3148933		Thermostat, 0ven				$ 181.60
12	310864		(alt.)		Appelez-nous	-
12	311498		(alt.)		Appelez-nous	-
12	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
13	314031		Indicator Light (2)				$ 62.88
13	3150662		Indicator Light (1)		Appelez-nous	-
14	3183118		Knob, Control (4) (infinite Switch) (white/almond)				$ 23.04
14	3183117		Knob, Control (4) (infinite Switch) (designer White)				$ 24.34
15	3183104		Knob, Control (thermostat) (designer White)		Appelez-nous	-
15	3183103		Knob, Control (thermostat) (white/almond)		Appelez-nous	-
16	313570		Tube Clip		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.07
17	313195		Rear Cover Control Panel		Appelez-nous	-
18	313101		Lens, Amber (3)		Appelez-nous	-
19	313608		Shield, Glass (2)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
20	3183115		Knob, Control (selector) (white/almond)				$ 23.60
20	3183116		Knob, Control (selector) (designer White)		Appelez-nous	-
