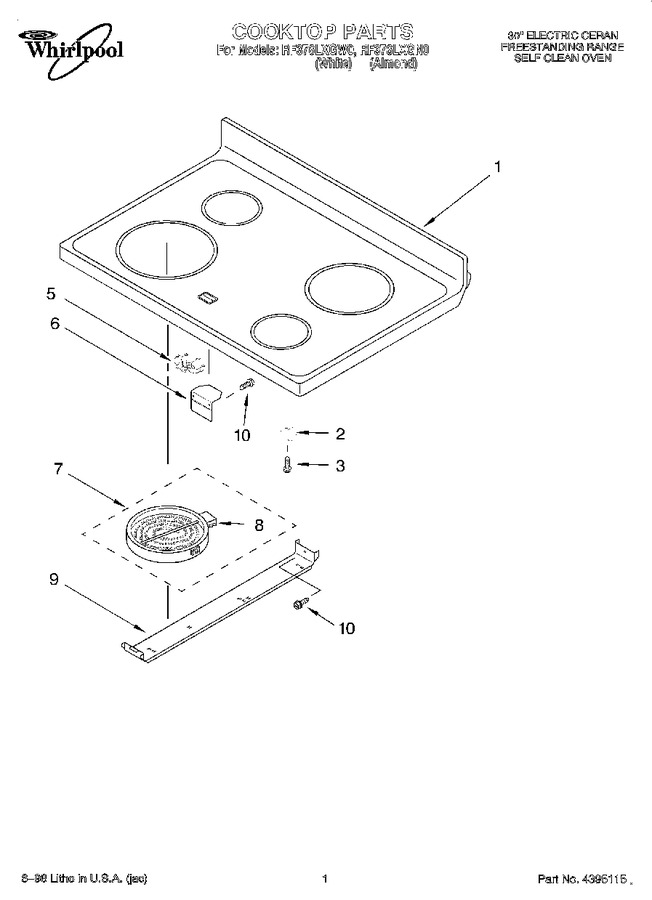

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8053541		Cooktop (white)		Appelez-nous	-
1	8053542		Cooktop (almond)		Appelez-nous	-
2	3149191		Spring, Locator				$ 9.45
3	WP3196170		Screw   (Replaces: 3196170)				$ 6.47
5	8053722		Light, Indicator (hot Surface)		Appelez-nous	-
6	3195810		Bracket, Ind Light		Appelez-nous	-
7	W10823698		Element, Surface (includes No. 8) (1800 W - Rr)   (Replaces: 8053606)			Immediately	$ 175.61
7	W10823711		Element, Surface (includes No. 8) (1200 W - Rf)   (Replaces: 8053621)			Immediately	$ 183.95
7	8053605		Element, Surface (includes No. 8) (2500 W - Lf)		Appelez-nous	-
8	8053620		Limiter, Temp. All Surface Elmnts		Appelez-nous	-
9	3196455		Bracket, Element		Appelez-nous	-
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
