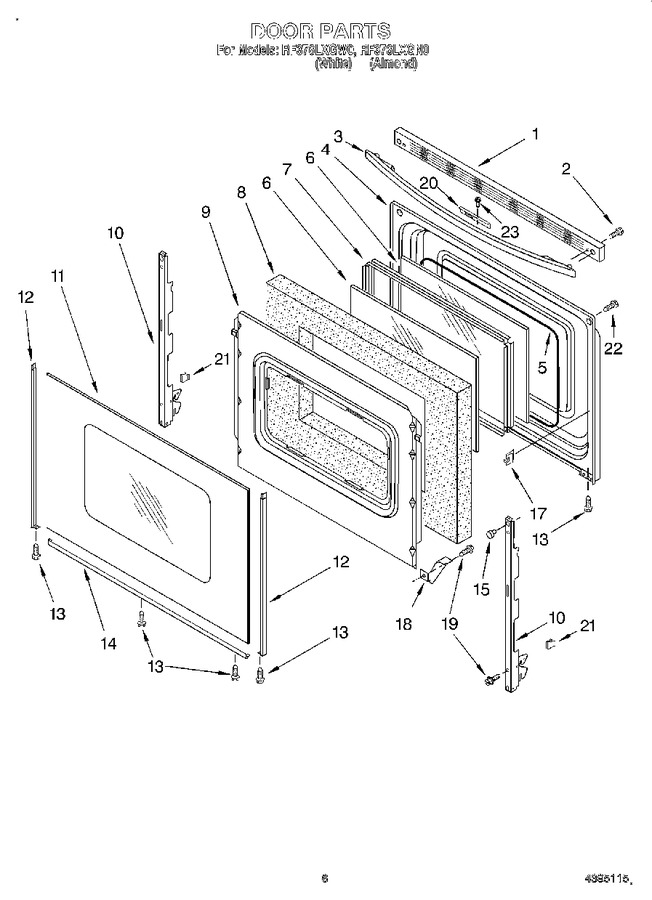

05 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3196819		Trim, Top		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 7.82
3	WPW10202217		Handle, Door   (Replaces: 3195922)				$ 231.98
4	3186292		Liner, Door		Appelez-nous	-
5	3195984		Seal, Window		Appelez-nous	-
6	WP8053948		Glass, Inner (2)   (Replaces: 3186271)				$ 160.45
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 76.37
8	WPW10278991		Insulation, Door   (Replaces: 3186250)			Immediately	$ 86.89
9	W11539580		Trim, Door Side   (Replaces: 3186297)				$ 199.17
10	WP8053807		Hinge, Door (2)   (Replaces: 3186068)				$ 81.73
11	WPW10118455		Glass, Outer Door   (Replaces: 8053478)			Immediately	$ 285.17
12	8184858		Trim, Side (right Hand)   (Replaces: 3195973)				$ 144.73
12	8184858		Trim, Side (left Hand)   (Replaces: 3195976)				$ 144.73
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
14	8184858		Trim, Bottom   (Replaces: 3195424)				$ 144.73
15	238614		Bumper (2)   (Replaces: 3195809)				$ 72.68
17	3196025		Clip, Door Glass				$ 20.10
18	3196794		Bracket, Window (2)				$ 24.34
19	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
20	3195914		Bracket, Latch		Appelez-nous	-
21	3196925		Clip, Door Stop				$ 9.06
22	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 7.16
23	261886		Coffee		Appelez-nous	-
23	261890		Harvest Gold		Appelez-nous	-
23	285365		Toast		Appelez-nous	-
23	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
23	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
23	350942		Primer (white)   (Replaces: 206922)				$ 80.69
23	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
23	978883		Almond (uncut)		Appelez-nous	-
23	261891		Harvest Gold (uncut)		Appelez-nous	-
23	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
23	285368		Platinum (uncut)		Appelez-nous	-
23	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
23	3191048		Cleaner, Glass		Appelez-nous	-
23	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 27.96
23	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
23	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
23	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
23	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
23	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
23	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
23	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
23	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
23	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
23	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
23	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
23	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
23	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
23	242831		Wire (14 Ga. 200 C Red)				$ 342.23
23	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
23	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
23	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
23	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
23	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
23	261582		Grease		Appelez-nous	-
23	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
23	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
23	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
23	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
23	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
23	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
23	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
23	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
23	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
23	261888		New Avocado		Appelez-nous	-
	LIT3195945		Installation Instr (templet)		Appelez-nous	-
	8053633		Harness, Wire (oven)		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 12.25
	313660		Clip, Ground Wire		Appelez-nous	-
	3184020		Wire, Ground   (Replaces: 311227)				$ 74.50
	3196132		Harness, Wire (oven Light)		Appelez-nous	-
	3196108		Harness, Wire (door Switch)		Appelez-nous	-
	3400964		Clip, Wire Harness   (Replaces: 3196520)				$ 76.28
	8053721		Harness, Wire (cooktop)		Appelez-nous	-
	LIT3191638		Safer Cooking Tips		Appelez-nous	-
	LIT8053398		Guide, Use & Care		Appelez-nous	-
	LIT8053714		Instructions, Installation		Appelez-nous	-
	LIT8053296		Tech Sheet		Appelez-nous	-
	814381		Pin Kit-dr Removal				$ 7.73
	WP3196154		Screw, Ground   (Replaces: 3196154)				$ 7.04
