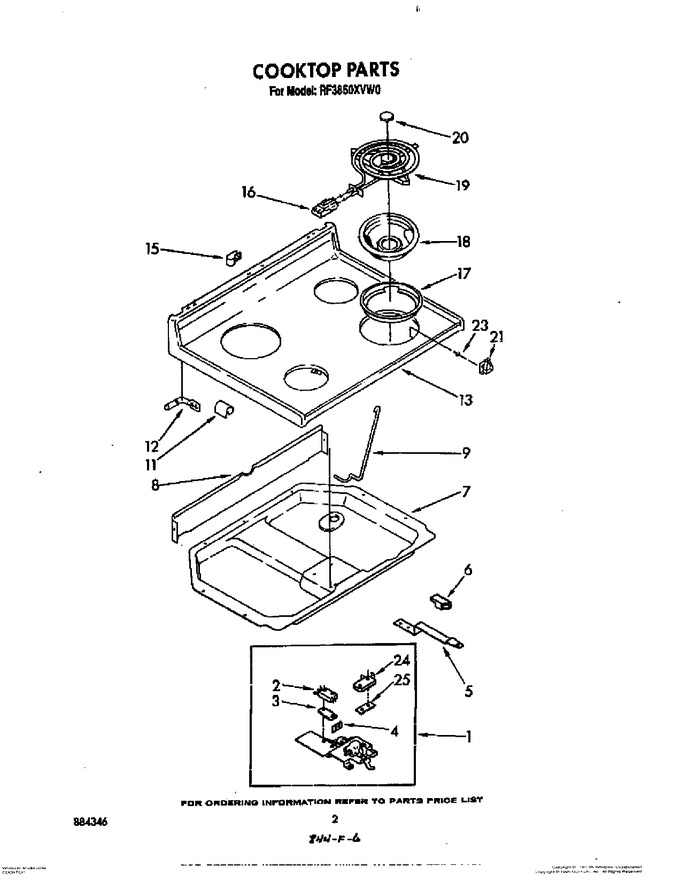

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3171148		Latch Assembly (pyro)		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	309258		Screw,6-3/8 (2)		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
5	3147065		Handle, Latch		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
6	155023		Screw 8-32 X 1/4			Immediately	$ 7.91
6	3148684		Knob, Latch		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
7	3149194		Box, Burner		Appelez-nous	-
8	307973		Shield, Wiring		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
9	WP681414		Screw, 10-32 X 1/2 (ground)   (Replaces: 690989)			Immediately	$ 7.07
9	3148659		Rod, Cooktop		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
13	3170982		Cooktop (almond)		Appelez-nous	-
13	3170981		Cooktop (white)		Appelez-nous	-
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
16	WP313808		Screw, 6-32 X 1/4 (4)   (Replaces: 313808)				$ 6.84
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 14.48
17	W10858781		Adapter Ring (8`` (2))   (Replaces: 3148354)				$ 85.64
17	W10854470		Adapter Ring (6`` (2))   (Replaces: 3148353)				$ 81.37
18	W10291024		Reflector Pan (6`` (2))   (Replaces: 3148406)			Immediately	$ 49.90
18	W10291024		Reflector Pan (8`` (2))   (Replaces: 3148407)			Immediately	$ 49.90
19	WP660532		Unit, Surface (2) (6``) (240v) (alt.)   (Replaces: 313964)			Immediately	$ 36.90
19	WP660532		Unit, Surface (2) (6``) (240v)   (Replaces: 660532)			Immediately	$ 36.90
19	WP660532		Unit, Surface (2) (6``) (240v) (alt.) L.f. & R.r.   (Replaces: 309334)			Immediately	$ 36.90
20	309195		Medallion (4)		Appelez-nous	-
21	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 9.02
23	814103		Rivet (4)   (Replaces: 3148789)				$ 9.02
24	3148669		Switch, Lock		Appelez-nous	-
25	3147864		Insulator, Switch		Appelez-nous	-
	WP660533		(alt.) R.f. & L.r. (includes Illus. 20)   (Replaces: 309340)			Immediately	$ 39.47
	WP660533		Unit, Surface (2) (8``) (240v)   (Replaces: 660533)			Immediately	$ 39.47
	LIT3148541		Guide, Use & Care		Appelez-nous	-
	LIT3148056		Instructions, Installation		Appelez-nous	-
	LIT313426		Tech Sheet		Appelez-nous	-
	WP660533		(alt.)   (Replaces: 313963)			Immediately	$ 39.47
	LIT884346		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
