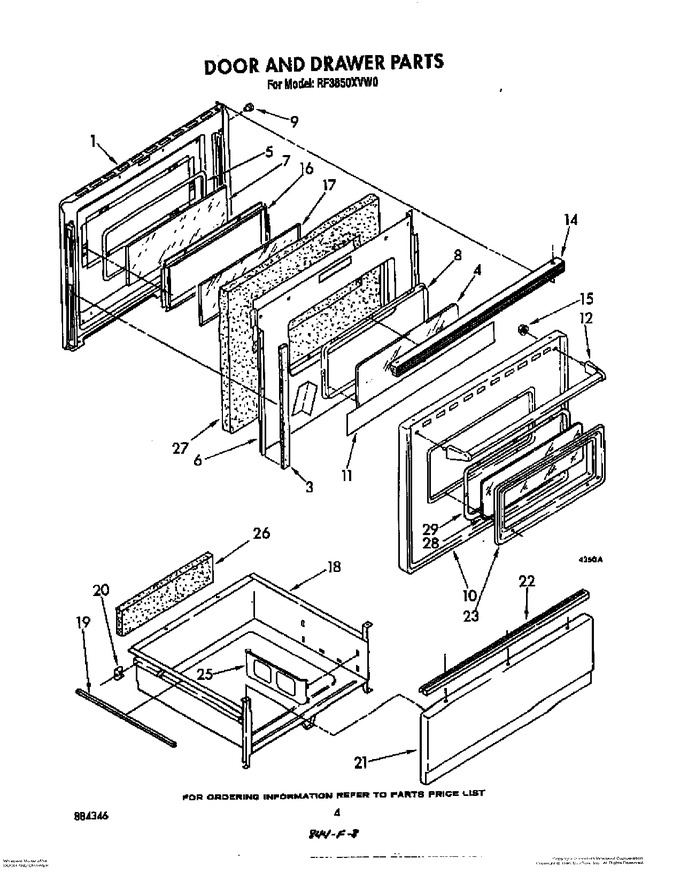

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3170706		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
1	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
3	3148441		Seal, Fiberglass (2)		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148159		Retainer, Insulation		Appelez-nous	-
6	3148443		Screw (4)		Appelez-nous	-
7	WP3169203		Glass, Inside   (Replaces: 313004)				$ 135.71
8	3148187		Retainer, Glass		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148201		Panel, Door (white)		Appelez-nous	-
10	3148205		Panel, Door (almond)		Appelez-nous	-
11	3148181		Pushnut (2)		Appelez-nous	-
11	3148184		Foil, Door		Appelez-nous	-
12	313455		Handle, Door		Appelez-nous	-
14	307748		Screw (3)		Appelez-nous	-
14	3148188		Trim, Panel		Appelez-nous	-
15	WP308499		Nut (2)   (Replaces: 308499)				$ 6.26
16	3148443		Screw (6)		Appelez-nous	-
16	3148234		Frame, Inner Glass		Appelez-nous	-
17	WP3169203		Glass, Outer   (Replaces: 313005)				$ 135.71
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
21	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
21	307935		Panel Drawer (white)		Appelez-nous	-
21	307939		Panel, Drawer (almond)		Appelez-nous	-
22	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
22	313337		Handle, Drawer		Appelez-nous	-
23	313045		Srew (8)		Appelez-nous	-
23	307731		Clip (2)		Appelez-nous	-
23	309133		Screw (2)		Appelez-nous	-
23	3149277		Frame, Window				$ 93.12
25	357645		Rack, Literature		Appelez-nous	-
26	302340		Pad, Sound (2)		Appelez-nous	-
27	3147951		Insulation		Appelez-nous	-
28	307732		Glass		Appelez-nous	-
29	307792		Retainer, Glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
