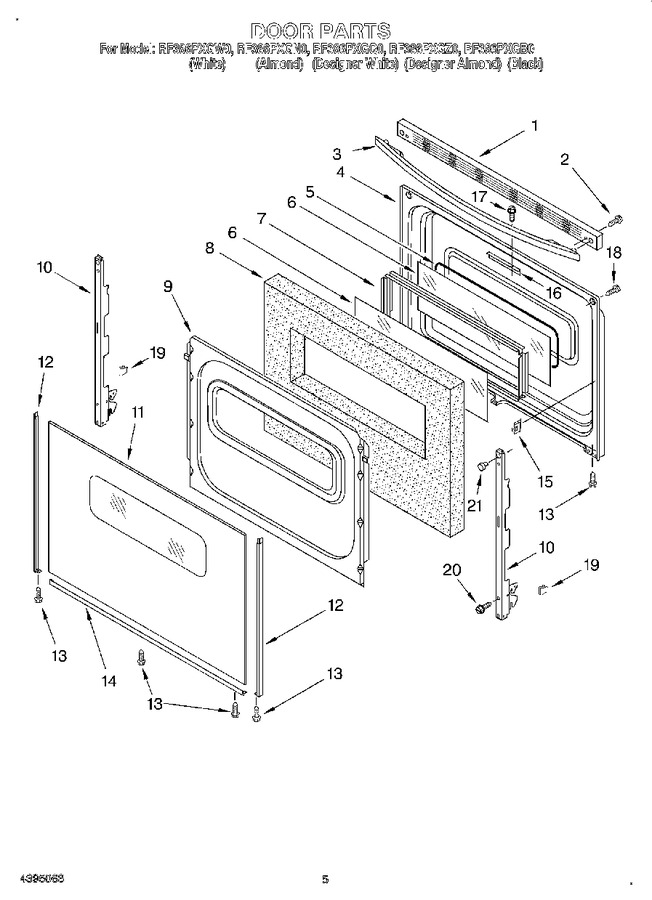

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3196821 | Trim, Door Top (white) |
|
- | |||||
| 1 | 3196820 | Trim, Door Top (almond) |
|
- | |||||
| 1 | 3196819 | Trim, Door Top (black) |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 7.82 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 3195218) |
|
$ 317.72 | |||||
| 3 | 3195921 | Handle, Door (almond) |
|
- | |||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: 3195922) |
|
$ 231.98 | |||||
| 4 | 3186296 | Liner, Door |
|
- | |||||
| 5 | 3195985 | Seal, Window |
|
- | |||||
| 6 | WP9758164 | Glass, Inner (2) (Replaces: 3186282) |
|
$ 137.08 | |||||
| 7 | 3186290 | Frame, Glass |
|
- | |||||
| 8 | 3186256 | Insulation, Door |
|
- | |||||
| 9 | 9761499 | Retainer, Insul. (Replaces: 3186299) |
|
$ 278.86 | |||||
| 10 | WP8053807 | Hinge, Door (2) (Replaces: 3186068) |
|
$ 81.73 | |||||
| 11 | WP9762476 | Glass, Outer Door (white) (Replaces: 8053481) |
|
$ 285.14 | |||||
| 11 | WP9762477 | Glass, Outer Door (black) (Replaces: 8053479) |
|
$ 282.96 | |||||
| 11 | 8053483 | Glass, Outer Door (almond) |
|
- | |||||
| 12 | 8184860 | Trim, Side (almond Left Hand) (Replaces: 3195975) |
|
$ 129.91 | |||||
| 12 | 8184858 | Trim, Side (black Right Hand) (Replaces: 3195973) |
|
$ 144.73 | |||||
| 12 | 8184858 | Trim, Side (black Left Hand) (Replaces: 3195976) |
|
$ 144.73 | |||||
| 12 | 8184860 | Trim, Side (almond Right Hand) (Replaces: 3195972) |
|
$ 129.91 | |||||
| 12 | 8184859 | Trim, Side (white Right Hand) (Replaces: 3195971) |
|
$ 146.49 | |||||
| 12 | 8184859 | Trim, Side (white Left Hand) (Replaces: 3195974) |
|
$ 146.49 | |||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 14 | 8184859 | Trim, Lower (white) (Replaces: 3195422) |
|
$ 146.49 | |||||
| 14 | 8184860 | Trim, Lower (almond) (Replaces: 3195423) |
|
$ 129.91 | |||||
| 14 | 8184858 | Trim, Lower (black) (Replaces: 3195424) |
|
$ 144.73 | |||||
| 15 | 3196025 | Clip, Glass (6) |
|
$ 20.10 | |||||
| 16 | 3195914 | Bracket, Latch |
|
- | |||||
| 17 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 18 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.16 | ||||
| 19 | 3196925 | Clip, Door Stop |
|
$ 9.06 | |||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 21 | 238614 | Bumper, Door (2) (Replaces: 3195809) |
|
$ 72.68 |
