SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Chassis


04 - Door

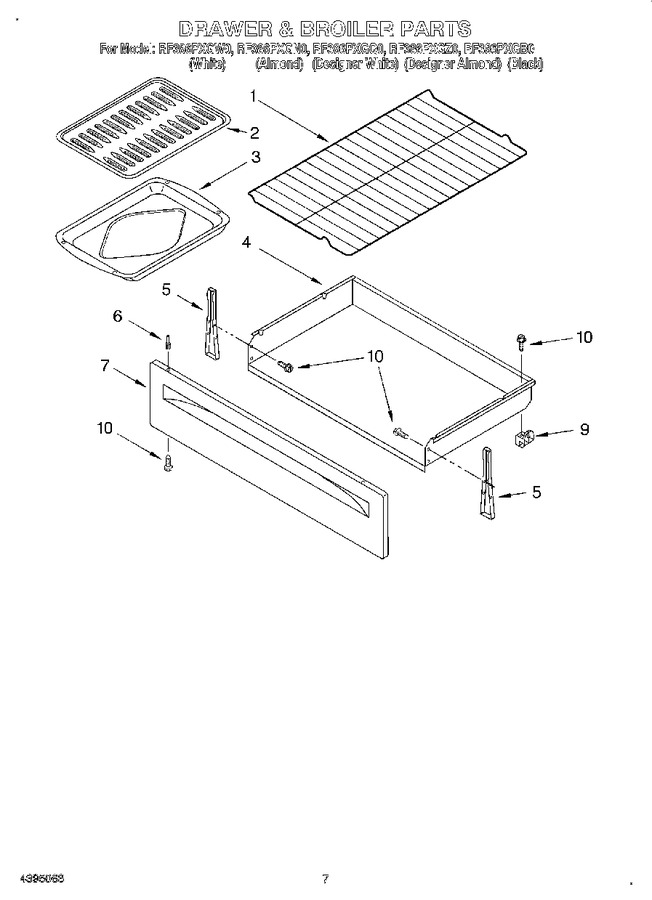

05 - Drawer & Broiler, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 42.16
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 82.63
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 279.38
4	8053342		Drawer, Storage		Appelez-nous	-
5	W10838990		Bracket, Drawer (2)   (Replaces: 3196816)			Immediately	$ 76.24
6	3196815		Rivet, Push (2) (almond)		Appelez-nous	-
6	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 9.60
6	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 9.49
7	W11219377		Panel, Drawer Front (white)   (Replaces: 8053339)				$ 182.21
7	8053340		Panel, Drawer Front (almond)		Appelez-nous	-
7	W11230488		Panel, Drawer Front (black)   (Replaces: 8053341)				$ 182.09
9	WP8053334		Glide, Drawer (2)   (Replaces: 8053334)			Immediately	$ 7.06
10	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
10	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
10	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
10	261582		Grease		Appelez-nous	-
10	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
10	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
10	313660		Clip, Ground Wire		Appelez-nous	-
10	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
10	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
10	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
10	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
10	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
10	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
10	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
10	261888		New Avocado		Appelez-nous	-
10	261886		Coffee		Appelez-nous	-
10	261890		Harvest Gold		Appelez-nous	-
10	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
10	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
10	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
10	350942		Primer (white)   (Replaces: 206922)				$ 80.69
10	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
10	978883		Almond (uncut)		Appelez-nous	-
10	261891		Harvest Gold (uncut)		Appelez-nous	-
10	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
10	285368		Platinum (uncut)		Appelez-nous	-
10	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
10	3191048		Cleaner, Glass		Appelez-nous	-
10	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 27.96
10	285365		Toast		Appelez-nous	-
10	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
10	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
10	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
10	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
10	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
10	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
10	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
10	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
10	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
10	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
10	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
10	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
10	242831		Wire (14 Ga. 200 C Red)				$ 342.23
10	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
10	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	LIT8053302		Tech Sheet		Appelez-nous	-
	3196108		Harness, Wire (door Switch)		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 12.25
	313660		Clip, Ground Wire		Appelez-nous	-
	LIT8053714		Instructions, Installation		Appelez-nous	-
	LIT3195945		Installation Instr (templet)		Appelez-nous	-
	LIT8053401		Guide, Use & Care		Appelez-nous	-
	3196696		Clip, Wire Harness		Appelez-nous	-
	8053514		Harness, Oven		Appelez-nous	-
	3400964		Clip, Wire Harness   (Replaces: 3196520)				$ 76.28
	8053721		Harness, Cooktop		Appelez-nous	-
	LIT3191638		Safer Cooking Tips		Appelez-nous	-
	3184020		Wire, Ground   (Replaces: 311227)				$ 74.50
	814381		Pin Kit-dr Removal				$ 7.73
	WP3196154		Screw, Ground   (Replaces: 3196154)				$ 7.04

    View Diagram in Separate Window       Print Part List
