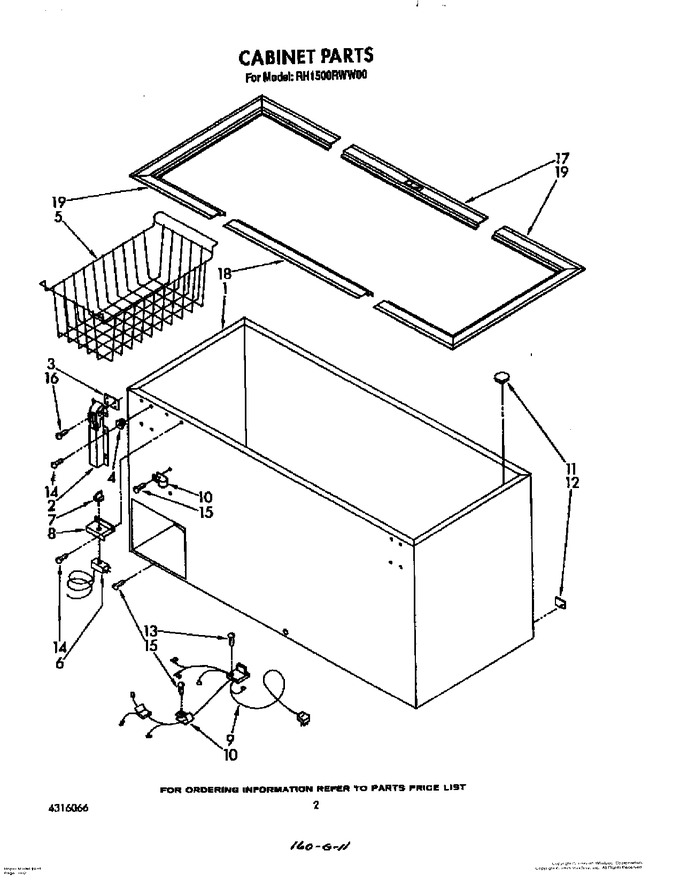

02 - Cabinet


03 - Door


04 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356490		Hinge Assembly   (Replaces: 4356373)				$ 211.36
3	1-17548-006		Hinge Spacer   (Replaces: 4356369)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356322		Wire Basket		Appelez-nous	-
6	4356323		Thermostat		Appelez-nous	-
7	4356324		Thermostat, Knob		Appelez-nous	-
8	4356370		Thermostat, Control Bracket		Appelez-nous	-
9	4356347		External, Wiring Harness		Appelez-nous	-
10	488946		Plastic, Clip   (Replaces: 4356328)				$ 18.41
11	4356334		Drain, Cap		Appelez-nous	-
12	4356333		Drain, Plug		Appelez-nous	-
13	487980		Screw		Appelez-nous	-
14	WP308685		Screw   (Replaces: 308685)			Immediately	$ 7.08
15	WP488787		Screw   (Replaces: 488787)				$ 9.52
16	489181		Screw		Appelez-nous	-
17	4-35011-004		Front, Breaker Strip   (Replaces: 4356378)				$ 75.80
18	4-35010-004		Rear, Breaker Strip   (Replaces: 4356377)		Appelez-nous	-
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
19	W11045300		End, Breaker Strip (2)   (Replaces: 4356376)				$ 80.74
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
19	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT4316066		Parts List		Appelez-nous	-
