Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4356386 Exterior, Door Panel Appelez-nous -
2 3-35284-001 Lock   (Replaces: 4356371) Special Order $ 24.42

3 2-35195-002 Hook Bolt, Lock   (Replaces: 4356303) Special Order $ 57.10

4 4356304 Key Appelez-nous -
5 4356374 Handle Appelez-nous -
6 4356306 Clip, Oblong Special Order $ 7.36

8 4356361 Interior, Door Panel Appelez-nous -
9 4356372 Nameplate Appelez-nous -
13 4356375 Gasket Appelez-nous -
14 4356317 Gasket, Clip Appelez-nous -
18 983465 Clip, Spring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

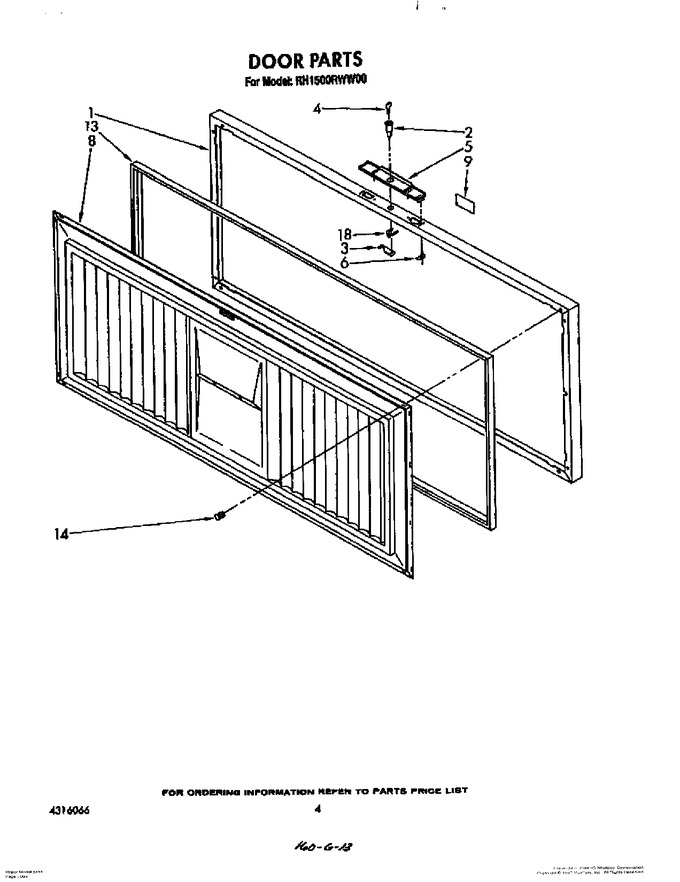

Diagram for RH1500RWW00
