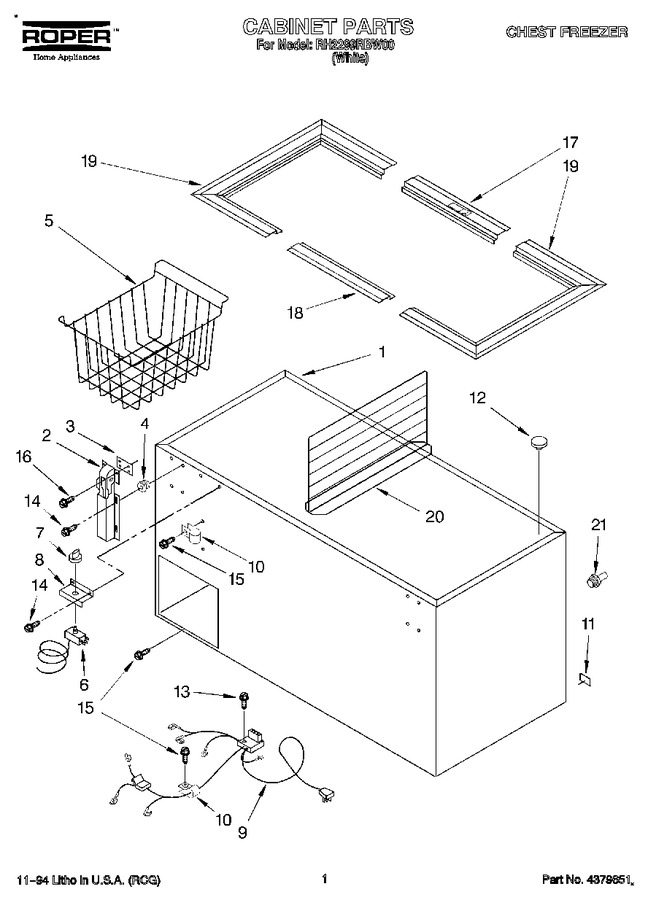

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11192185		Hinge, Assembly   (Replaces: 4356504)				$ 164.89
3	1-17548-006		Hinge Spacer   (Replaces: 4356369)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356322		Wire Basket		Appelez-nous	-
6	4356323		Thermostat		Appelez-nous	-
7	4356324		Thermostat, Knob		Appelez-nous	-
8	4356499		Thermostat, Control Bracket		Appelez-nous	-
9	4356507		Wiring, Harness External		Appelez-nous	-
10	488946		Plastic, Clip   (Replaces: 4356328)				$ 18.41
11	4356505		Drain, Cap		Appelez-nous	-
12	4356455		Drain, Plug		Appelez-nous	-
13	487980		Screw		Appelez-nous	-
14	4356491		Screw		Appelez-nous	-
15	W11233072		Screw   (Replaces: 4356496)			Immediately	$ 12.62
16	489181		Screw		Appelez-nous	-
17	4356641		Front, Breaker Strip   (Replaces: 4356467)		Appelez-nous	-
18	W11045298		Rear, Breaker Strip   (Replaces: 4356465)		Appelez-nous	-
19	W11045300		End, Breaker Strip (2)   (Replaces: 4356376)				$ 80.74
20	4356477		Divider		Appelez-nous	-
21	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
21	350942		Enamel, White (13 Oz. Spray Can)				$ 80.69
21	W11663505		Adapter, Drain   (Replaces: 4356481)				$ 15.45
21	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT2165306		Use & Care Guide		Appelez-nous	-
