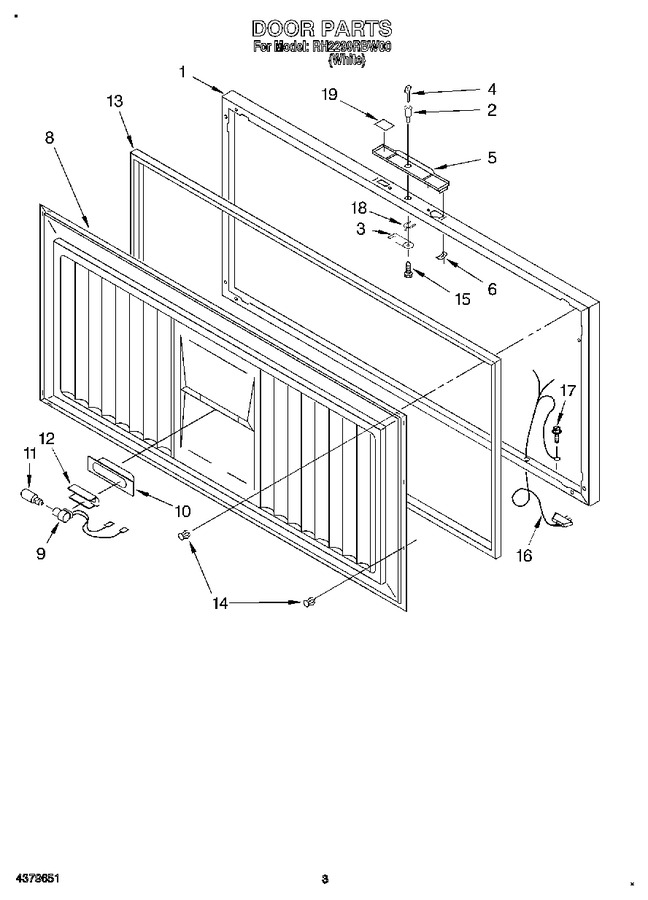

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4356501 | Exterior Door Panel (includes Insulation) |
|
- | |||||
| 2 | 4356484 | Lock |
|
- | |||||
| 3 | 2-35195-002 | Hook Bolt, Lock (Replaces: 4356303) |
|
$ 57.10 | |||||
| 4 | 4356485 | Key |
|
- | |||||
| 5 | 4356483 | Handle |
|
- | |||||
| 6 | 4356306 | Clip, Oblong |
|
$ 7.36 | |||||
| 8 | 4356502 | Interior, Door Panel |
|
- | |||||
| 9 | 4356309 | Lamp Socket |
|
- | |||||
| 10 | 3-25693-001 | Reflector, Light (Replaces: 4356500) |
|
$ 15.36 | |||||
| 11 | W10873798 | Bulb, Light (Replaces: 4356311) |
|
Immediately | $ 12.53 | ||||
| 12 | 4356312 | Heat Shield |
|
- | |||||
| 13 | 4356503 | Gasket |
|
- | |||||
| 14 | 4356317 | Gasket, Clip |
|
- | |||||
| 15 | W11233072 | Screw (Replaces: 4356492) |
|
Immediately | $ 12.62 | ||||
| 16 | 4356506 | Wiring Harness, Internal |
|
- | |||||
| 17 | W11233072 | Screw (Replaces: 4356496) |
|
Immediately | $ 12.62 | ||||
| 18 | 4356493 | Clip, Spring |
|
- | |||||
| 19 | 4356372 | Handle, Insert (2) |
|
- |
