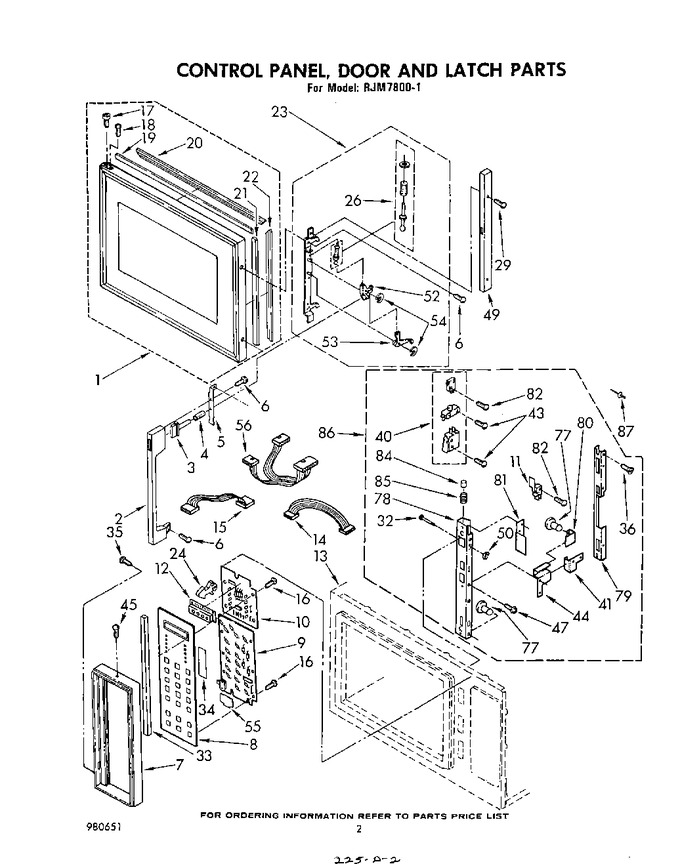

02 - Control Panel, Door And Latch


03 - Cabinet, Hinge And Stirrer , Literature


04 - Magnetron And Airflow


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329430		Door, Complete		Appelez-nous	-
2	310110		Handle, Door		Appelez-nous	-
3	310112		Button, Door Handle		Appelez-nous	-
4	310197		Spring, Door Handle		Appelez-nous	-
5	310111		Bracket, Door Handle		Appelez-nous	-
6	WP489128		Xscrew, 8-32 X 7/16   (Replaces: 310209)				$ 9.79
7	311464		Frame, Control Panel		Appelez-nous	-
8	60763		Panel, Glass Touch		Appelez-nous	-
9	60782		P.c. Board, Touch Panel		Appelez-nous	-
10	60785		Display Assembly, L.e.d. (includes Illus. 12)		Appelez-nous	-
11	310149		Switch, Light		Appelez-nous	-
12	60776		Clock, L.e.d.		Appelez-nous	-
13	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
14	WG02F05449		Harness, Power Supply   (Replaces: 311734)				$ 84.06
15	310237		Harness, Touch Panel		Appelez-nous	-
16	311773		Screw, 6 X 5/16 T/b (6)		Appelez-nous	-
17	WPW10068250		Screw, 8-32 X 5/16 (2)   (Replaces: 311776)				$ 3.66
18	WPW10068250		Screw, 8-32 X 19/64 (6)   (Replaces: 311777)				$ 3.66
19	311342		Seal, Top & Bottom (2) (alternate)		Appelez-nous	-
19	311634		Seal, Top & Bottom (2) (alternate)		Appelez-nous	-
20	311340		Retainer, Top & Bottom Seals (2)		Appelez-nous	-
21	311343		Seal Sides (2) (alternate)		Appelez-nous	-
21	311635		Seal Sides (2) (alternate)		Appelez-nous	-
22	311341		Retain, Side Seal (2)		Appelez-nous	-
23	328740		Latch, Door		Appelez-nous	-
24	61053		Clip, Clock To Socket (2)		Appelez-nous	-
26	832797		Plunger, Latch		Appelez-nous	-
29	310210		Screw, 8-10 X .281		Appelez-nous	-
32	307603		Pin, Roller (3)		Appelez-nous	-
33	309602		Gasket, Control Panel Frame		Appelez-nous	-
34	310224		Film, Light Diffusing (3)		Appelez-nous	-
35	309170		Screw, 8-18 Bt X .88		Appelez-nous	-
36	309080		Screw, 8-32 X 3/8 (2) (ground Wire)		Appelez-nous	-
40	832811		Switch Kit, Door (kit Contains Primary, Monitor & Secondary Switches. All 3 Switchs Must Be Replace		Appelez-nous	-
41	307611		Insulator, Primary Switch		Appelez-nous	-
43	98106		Screw, 6-32 X 7/8 (4)		Appelez-nous	-
44	310148		Bracket, Primary Switch		Appelez-nous	-
45	WP488627		Screw, 8a X 1/2 (3)   (Replaces: 338156)				$ 6.81
47	310629		Screw, 6-32 X 3/8 (2)		Appelez-nous	-
49	310125		End Cap, Door		Appelez-nous	-
50	307605		Ring, Retaining (3)		Appelez-nous	-
52	310119		Cam, Latch		Appelez-nous	-
53	310120		Lever, Latch Cam		Appelez-nous	-
54	WPY014874		Ring, ``e`` (2)   (Replaces: 310386)				$ 6.98
55	310343		Shield, Glass		Appelez-nous	-
56	311733		Harness, Display		Appelez-nous	-
77	310951		Rivet, Accordian (5)		Appelez-nous	-
80	310330		Barrier, Visibility		Appelez-nous	-
81	310154		Insulator, Light & Monitor Switch		Appelez-nous	-
82	310211		Screw, 4-40 (2)		Appelez-nous	-
84	310124		Damper, Spring		Appelez-nous	-
85	310199		Spring, Interlock		Appelez-nous	-
86	328655		Interlock Assembly		Appelez-nous	-
87	311928		Rivet, Pop (3)				$ 5.33
