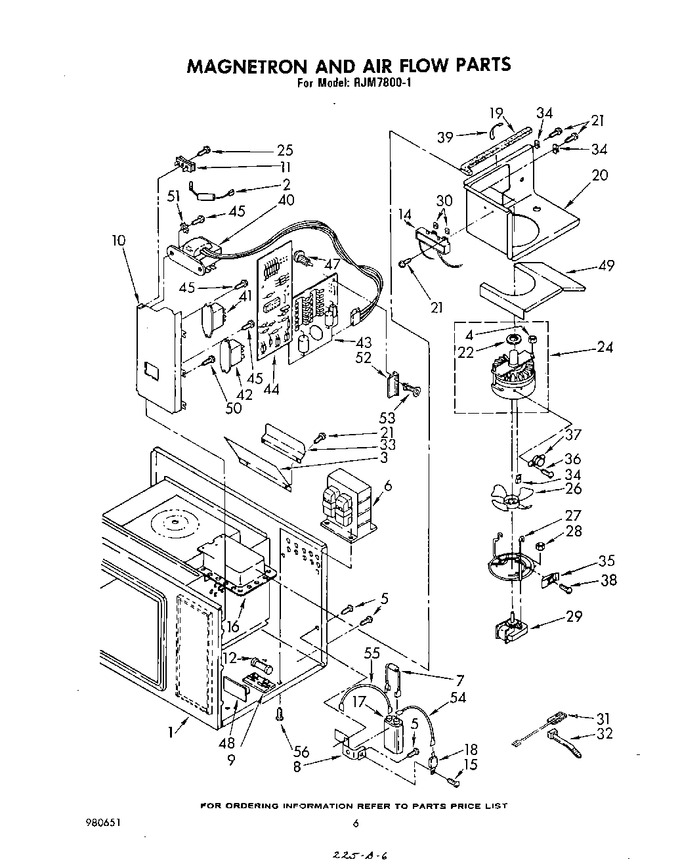

04 - Magnetron And Airflow
05 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 329223 | Resistor, Power (3 Ohm) |
|
- | |||||
| 3 | 307635 | Deflector, Air |
|
- | |||||
| 4 | 310300 | Nut, 5 Mm-0.8 Flange (2) |
|
- | |||||
| 5 | 258857 | Screw, 10-32 X 1/2 |
|
- | |||||
| 6 | 307676 | Transformer |
|
- | |||||
| 7 | 329163 | Resistor (2 Watt 10m Ohm) |
|
- | |||||
| 8 | 308572 | Bracket, Capacitor |
|
- | |||||
| 9 | 309795 | Block, Fuse |
|
- | |||||
| 10 | 309997 | Bracket, Support |
|
- | |||||
| 11 | 00573828 | Block, Terminal (Replaces: 310967) |
|
Immediately | $ 26.95 | ||||
| 12 | WPW10017410 | Fuse (15 Amp) (Replaces: 311167) |
|
Immediately | $ 19.05 | ||||
| 13 | 310629 | Screw, 8-32 X 3/8 |
|
- | |||||
| 14 | 309941 | Reed Relay (alternate) |
|
- | |||||
| 14 | 309623 | Relay, Reed (alternate) |
|
- | |||||
| 17 | 311724 | Capacitor (alternate) |
|
- | |||||
| 17 | 311723 | Capacitor (alternate) |
|
- | |||||
| 18 | 832836 | Rectifier, High Voltage |
|
- | |||||
| 19 | WP854334 | Seal, Air Vent (Replaces: 307618) |
|
$ 11.95 | |||||
| 20 | 307529 | Duct, Cooling Air |
|
- | |||||
| 21 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 22 | 311718 | Gasket, Magnetron |
|
- | |||||
| 24 | 311505 | Magnetron (alternate) |
|
- | |||||
| 24 | 311461 | Magnetron (alternate) |
|
- | |||||
| 25 | 309778 | Screw, Terminal Block To Bracket |
|
- | |||||
| 26 | 307535 | Blade, Fan |
|
- | |||||
| 27 | 311905 | Mount, Fan Motor |
|
- | |||||
| 28 | 311136 | Nut, Flange (2) |
|
- | |||||
| 29 | 310921 | Motor, Fan (alternate) |
|
- | |||||
| 29 | 310221 | Motor Fan (alternate) |
|
- | |||||
| 30 | 98084 | Clip, Relay Mounting (2) |
|
- | |||||
| 31 | 309084 | Wire, High Voltage (3) |
|
- | |||||
| 32 | WPW10339879 | Tie, Cable (3) (Replaces: 309330) |
|
$ 7.11 | |||||
| 33 | 308219 | Deflector, Exhaust |
|
- | |||||
| 34 | 338177 | Clip, Air Duct (2) |
|
- | |||||
| 35 | 308845 | Fastener, Speed Nut |
|
- | |||||
| 36 | 246131 | Screw, 6a X 3/8 |
|
- | |||||
| 37 | 307564 | Thermostat, Fixed |
|
- | |||||
| 38 | WP681414 | Screw, 10-16 X 1/2 (3) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 39 | WP98997 | Clip, Relay Leads (2) (Replaces: 98997) |
|
$ 9.98 | |||||
| 40 | TB1056 | Transformer & Harness Assembly (Replaces: 60355) |
|
- | |||||
| 41 | 310372 | Relay Power (12 V.d.c.) (alternate) |
|
- | |||||
| 41 | 310370 | Relay Power (12 V.d.c.) (alternate) |
|
- | |||||
| 42 | 310373 | Relay Power (120 Vac) (alternate) |
|
- | |||||
| 42 | 310371 | Relay Power (120 Vac) (alternate) |
|
- | |||||
| 43 | 60792 | Power Supply Assembly |
|
- | |||||
| 44 | 61096 | Microcomputer |
|
- | |||||
| 45 | WP486754 | Screw, 6-32 X 1/4 (Replaces: 246119) |
|
$ 6.75 | |||||
| 47 | 310956 | Spacer, P.c. Board |
|
- | |||||
| 48 | 310391 | Shield, Fuse |
|
- | |||||
| 49 | 310419 | Shield, Magnetron |
|
- | |||||
| 50 | 246131 | Screw, 6 X 3/8hh T/b (6) |
|
- | |||||
| 51 | 138473 | Lockwasher |
|
- | |||||
| 52 | 310432 | Shield, P.c. Board |
|
- | |||||
| 53 | 310423 | Fastener, Board |
|
- | |||||
| 54 | 311466 | Jumper, High Voltage (rectifier To Capacitor) |
|
- | |||||
| 55 | 311467 | Jumper, High Voltage (transformer To Capacitor) |
|
- | |||||
| 56 | 312185 | Screw, 10-32 X 1/2 (4) |
|
- |
