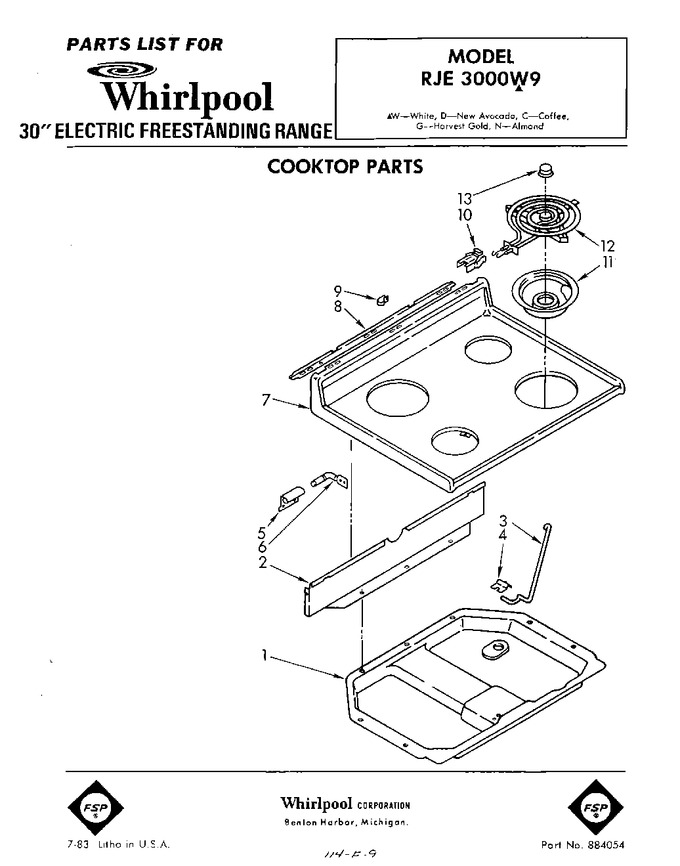

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307929		Burner Box		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (6)   (Replaces: 309112)				$ 7.04
2	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
2	307973		Shield, Wiring		Appelez-nous	-
3	307968		Rod, Cooktop		Appelez-nous	-
4	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
4	307967		Retainer, Cooktop		Appelez-nous	-
5	307965		Bracket, Cooktop (2)		Appelez-nous	-
6	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
6	307966		Pin, Cooktop (2)		Appelez-nous	-
7	307872		Cooktop (almond)		Appelez-nous	-
7	307867		Cooktop (harvest Gold)		Appelez-nous	-
7	307868		Cooktop (coffee)		Appelez-nous	-
7	307869		Cooktop (new Avocado)		Appelez-nous	-
7	307870		Cooktop (white)		Appelez-nous	-
8	309232		Barrier		Appelez-nous	-
8	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
9	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
9	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
10	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
10	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
11	WPW10196406		Pan (6`` (2))   (Replaces: 308539)			Immediately	$ 12.05
11	W10196405RW		Pan (8`` (2))   (Replaces: 308540)			Immediately	$ 18.70
12	312406		Unit, Surface (6`` (3))		Appelez-nous	-
12	312407		Unit, Surface (8`` (1) (includes Illus. 13))		Appelez-nous	-
13	261990		Medallion (4)		Appelez-nous	-
