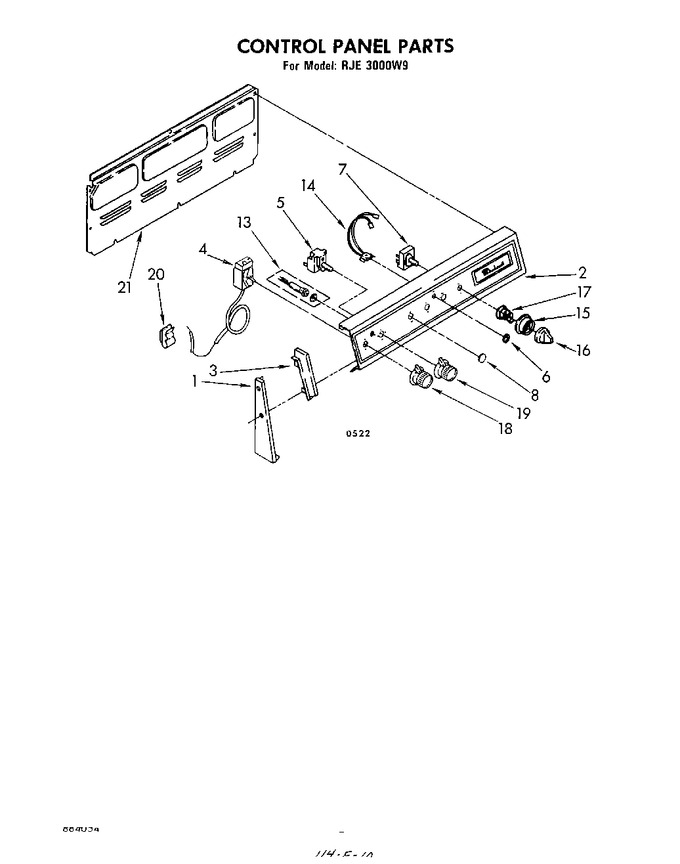

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3390631		End Trim (screw, 10a X 3/8 (2))   (Replaces: 309112)				$ 7.04
1	WP681414		End Trim (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 7.07
1	308854		End Trim (r.h.)		Appelez-nous	-
1	308858		End Trim (l.h.)		Appelez-nous	-
2	WP681414		Control Panel (screw, 10-32 X 1/2 (ground) (3))   (Replaces: 690989)			Immediately	$ 7.07
2	312499		Control Panel (coffee)		Appelez-nous	-
2	312496		Control Panel (new Avocado)		Appelez-nous	-
2	312497		Control Panel (harvest Gold)		Appelez-nous	-
2	312498		Control Panel (almond)		Appelez-nous	-
2	307831		Control Panel (screw, 8a X 5/8 (4))		Appelez-nous	-
2	312495		Control Panel (white)		Appelez-nous	-
3	308144		End Cap, R.h.		Appelez-nous	-
3	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 357670)			Immediately	$ 12.65
3	308146		End Cap, L.h.		Appelez-nous	-
3	98084		Clip (8)		Appelez-nous	-
3	WP488627		Screw, 8a X 1/2 (2)   (Replaces: 338156)				$ 6.81
4	308789		Thermostat, Oven (alternate)		Appelez-nous	-
4	487384		Thermostat, Oven (screw, 6-32 X 1/4 (2))		Appelez-nous	-
4	308483		Thermostat, Oven (alternate)		Appelez-nous	-
5	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 6.61
5	310348		Switch, Selector (3 Position)		Appelez-nous	-
6	309221		Lens, Red		Appelez-nous	-
7	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 6.61
7	W10900107		Switch, Infinite (use W/8`` Surface Unit (1))   (Replaces: 311844)			Immediately	$ 51.87
7	WP3149401		Switch, Infinite (use W/6`` Surface Unit (3))   (Replaces: 311845)				$ 134.65
8	308535		Plug Button		Appelez-nous	-
13	310393		Light, Pilot (oven)		Appelez-nous	-
14	310327		Light Indicator (surface Unit)		Appelez-nous	-
15	307456		Bezel, Control Knob (4)				$ 31.10
16	WP307458		Knob, Control (4)   (Replaces: 307458)				$ 17.20
17	307828		Spring, Bezel (4)		Appelez-nous	-
18	328709		Knob, Thermostat		Appelez-nous	-
19	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.03
19	328707		Knob, Selector		Appelez-nous	-
20	309211		Tube Clip		Appelez-nous	-
21	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.07
21	308157		Cover, Rear		Appelez-nous	-
