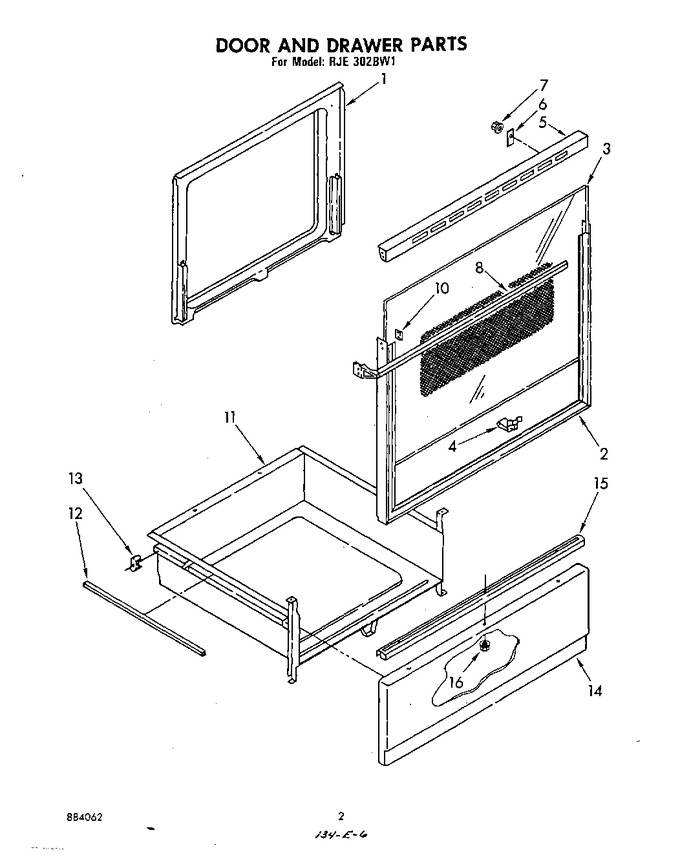

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw, 10a X 3/8 (3)		Appelez-nous	-
1	329688		Liner, Door		Appelez-nous	-
2	310427		Frame, Door 30``		Appelez-nous	-
3	00573829		Glass, Outer   (Replaces: 310655)			Immediately	$ 27.48
4	310706		Clip, Glass (10)		Appelez-nous	-
5	310784		Top, Door		Appelez-nous	-
5	307748		Screw (2)		Appelez-nous	-
6	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
6	310705		Hold Down, Glass (2)		Appelez-nous	-
7	WP90296		Fastener, Pushnut (2)   (Replaces: 308593)				$ 7.07
8	312722		Handle, Door				$ 118.10
8	WP912618		Screw (4)   (Replaces: 308541)				$ 6.98
10	311506		Clip		Appelez-nous	-
11	327887		Drawer, Utility		Appelez-nous	-
12	309329		Protector, Drawer Slide (2)		Appelez-nous	-
13	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
13	307980		Glide, Rear (2)		Appelez-nous	-
14	307937		Panel, Drawer (coffee)		Appelez-nous	-
14	309923		Panel Drawer (black)		Appelez-nous	-
14	313172		Panel, Drawer (platinum)		Appelez-nous	-
14	313171		Panel, Drawer (toast)		Appelez-nous	-
14	307939		Panel, Drawer (almond)		Appelez-nous	-
14	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
14	307936		Panel, Drawer (new Avocado)		Appelez-nous	-
14	307935		Panel Drawer (white)		Appelez-nous	-
14	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
15	WP912618		Screw (3)   (Replaces: 312578)				$ 6.98
15	307956		Handle, Drawer		Appelez-nous	-
16	WP486255		Palnut, 8-32   (Replaces: 308542)				$ 5.54
