01 - Cooktop
02 - Door And Drawer
03 - Control Panel
04 - Oven
05 - Literature And Optional
SELECT A DIAGRAM
New Model Search:

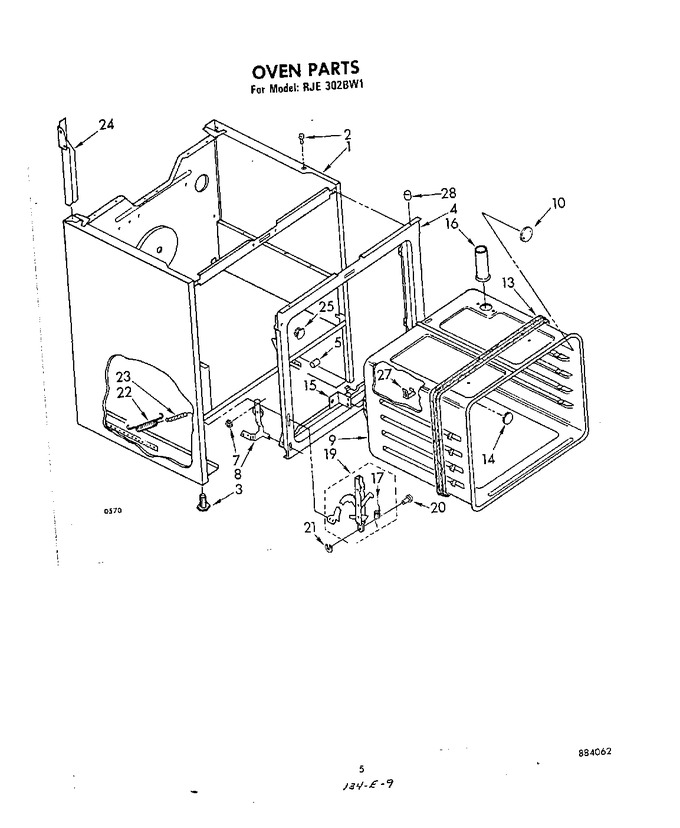

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 329965 | Main Chassis (harvest Gold) |
|
- | |||||
| 1 | 330094 | Main Chassis (platinum) |
|
- | |||||
| 1 | 330093 | Main Chassis (toast) |
|
- | |||||
| 1 | 329966 | Main Chassis (almond) |
|
- | |||||
| 1 | 329962 | Main Chassis (white) |
|
- | |||||
| 1 | 329963 | Main Chassis (new Avocado) |
|
- | |||||
| 1 | 329964 | Main Chassis (coffee) |
|
- | |||||
| 2 | 238614 | Bumper, Cooktop (2) |
|
$ 72.68 | |||||
| 3 | WPW10058460 | Leg Leveling (4) (Replaces: 312701) |
|
Immediately | $ 7.07 | ||||
| 4 | 327886 | Frame, Front |
|
- | |||||
| 4 | WP681414 | Screw, 10-16 X 1/2 (13) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 5 | 307985 | Pin, Hinge |
|
$ 29.54 | |||||
| 7 | 308306 | Pushnut |
|
- | |||||
| 8 | WP681414 | Screw, 10-32 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 8 | 327890 | Hinge (r.h.) |
|
- | |||||
| 8 | 327891 | Hinge (l.h.) |
|
- | |||||
| 9 | 311056 | Screw (2) |
|
- | |||||
| 9 | 329000 | Oven (30`` Pyro) |
|
- | |||||
| 10 | 308543 | Cover, Plate |
|
- | |||||
| 13 | 309107 | Seal |
|
$ 63.50 | |||||
| 14 | 257314 | Plug Button |
|
- | |||||
| 15 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 15 | 311220 | Bracket, Oven (mounting) |
|
- | |||||
| 16 | 307960 | Vent, Oven |
|
- | |||||
| 16 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 17 | 308207 | Spring, Door Stop |
|
- | |||||
| 19 | 329712 | Channel, Arm (2) |
|
- | |||||
| 20 | WP307986 | Hinge Pin (2) (Replaces: 307986) |
|
$ 11.78 | |||||
| 21 | 307594 | Ring, Retainer (2) |
|
- | |||||
| 22 | 308127 | Spring, Oven Door (2) |
|
$ 11.75 | |||||
| 23 | WP308125 | Anchor, Spring (2) (Replaces: 308125) |
|
$ 10.94 | |||||
| 24 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 24 | 308131 | Support, Channel (r.h.) |
|
- | |||||
| 24 | 308132 | Support, Channel (l.h.) |
|
- | |||||
| 25 | 308535 | Plug Button |
|
- | |||||
| 27 | 98005642 | Clip, Therm Bulb (2) (Replaces: 258139) |
|
Immediately | $ 74.64 | ||||
| 28 | 310210 | Screw, 8-32 X 5/16 (2) |
|
- | |||||
| 28 | 311909 | Locator, Cooktop (2) |
|
- |
